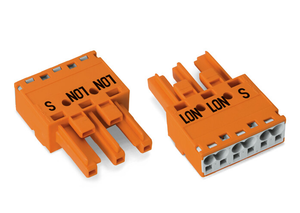

WAGO 730-103 Socket with auto cutting of live conductor 3-pole, orange
Wago
$7.71
Socket; automatic L-disconnection; 3-pole; orange.
The WAGO component equivalent to 730103 is a specific type of electrical connector or terminal block used for various wiring applications. It is designed to provide secure and reliable connections in electrical circuits, ensuring efficient conductivity and safety. This component is commonly used in industrial, commercial, and residential electrical installations, offering ease of use and versatility. The equivalent model to 730103 maintains the same high standards of quality and performance, making it a suitable replacement or alternative for the original part.
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Orange
- connection technology:
- IDC
- connector connection type:
- For conductor
- contact material:
- Brass
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- CN
- depth:
- 23 mm / 0.906 inch
- fine stranded conductor:
- 0.75 1.5 mm / 18 16 AWG
- fire load:
- 0.169 MJ
- flammability class per ul94:
- V0
- height:
- 27 mm / 1.063 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +85 C
- material group:
- I
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- pole no:
- 3
- rated current:
- 0.416666666666667
- rated current csa use group c:
- 0.416666666666667
- rated current ul use group c:
- 0.416666666666667
- rated surge voltage ii 2:
- 6 kV
- rated surge voltage iii 2:
- 6 kV
- rated surge voltage iii 3:
- 6 kV
- rated voltage csa use group c:
- 600 V
- rated voltage iii 2:
- 630 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- IEC/EN 60664-1
- weight:
- 7.064 g
- width:
- 26.5 mm / 1.043 inch
