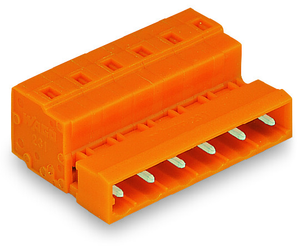

WAGO 730-113 Male Connector, 3-Pole, Orange
Wago
$6.66
Male connector; 3-pole; orange.
The WAGO component equivalent to 730113 is a specific type of electrical connector or terminal block used for various wiring applications. These components are known for their reliability, ease of use, and secure connections, making them suitable for both industrial and residential electrical installations. The equivalent component would offer similar features such as tool-free operation, compact design, and robust construction, ensuring efficient and safe electrical connections.
- actuation type:
- Operating tool
- approvals per:
- CSA
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Orange
- connection technology:
- CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- DE
- depth:
- 22.5 mm / 0.886 inch
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 2.5 mm
- fire load:
- 0.214 MJ
- flammability class per ul94:
- V0
- height:
- 35.5 mm / 1.398 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +85 C
- material group:
- I
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 500 V
- packaging type:
- Bag
- pole no:
- 3
- rated current:
- 0.416666666666667
- rated current csa use group c:
- 0.416666666666667
- rated current ul use group c:
- 0.416666666666667
- rated surge voltage ii 2:
- 6 kV
- rated surge voltage iii 2:
- 6 kV
- rated surge voltage iii 3:
- 6 kV
- rated voltage csa use group c:
- 600 V
- rated voltage iii 2:
- 630 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- IEC/EN 60664-1
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 9.759 g
- width:
- 30 mm / 1.181 inch
