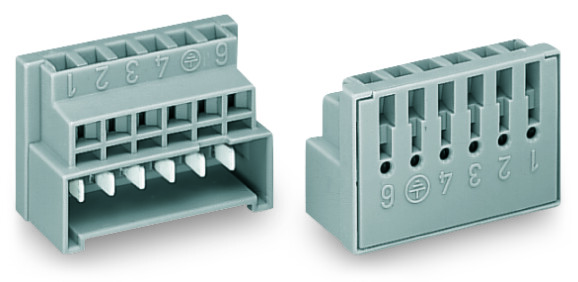

WAGO 730-116 Male Connector, 6-Pole, Gray
Wago
$11.11
Male connector; direct marking; 6-pole; gray.
The WAGO component equivalent to 730116 is a specific type of electrical connector or terminal block used for various wiring applications. It is designed to provide secure and reliable connections in electrical circuits, ensuring efficient conductivity and safety. This component is commonly used in industrial, commercial, and residential electrical installations, offering ease of use and versatility. The equivalent model to 730116 maintains the same high standards of quality and performance, making it a suitable replacement or alternative for the original part.
- actuation type:
- Operating tool
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Orange
- connection technology:
- CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- DE
- depth:
- 30 mm / 1.181 inch
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 2.5 mm
- fire load:
- 0.292 MJ
- flammability class per ul94:
- V0
- height:
- 29 mm / 1.142 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +85 C
- material group:
- I
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 500 V
- packaging type:
- Bag
- pole no:
- 6
- rated current:
- 0.416666666666667
- rated current csa use group c:
- 0.416666666666667
- rated current ul use group c:
- 0.416666666666667
- rated surge voltage ii 2:
- 6 kV
- rated surge voltage iii 2:
- 6 kV
- rated surge voltage iii 3:
- 6 kV
- rated voltage csa use group c:
- 600 V
- rated voltage iii 2:
- 630 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- IEC/EN 60664-1
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 16.744 g
- width:
- 43 mm / 1.693 inch
