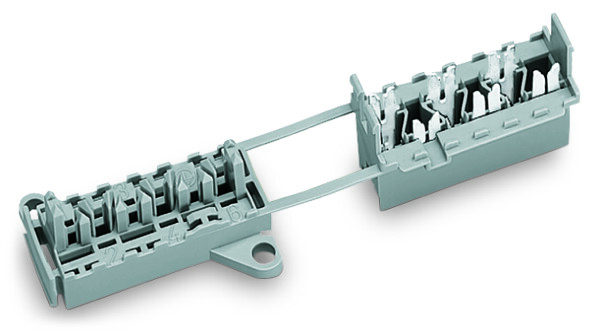

WAGO 730-126 6-Pole IDC Socket Connector with Mounting Flanges
Wago
$5.87
Socket; clamping collar; 6-pole; gray.
The WAGO component equivalent to 730126 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and maintenance-free connections. This component is typically used in various industrial applications, including control cabinets, junction boxes, and distribution boards, to facilitate the connection of wires and cables. It is known for its high-quality construction, ease of use, and compatibility with other WAGO products, making it a preferred choice for professionals in the field.
- approvals per:
- CSA
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Gray
- connection technology:
- IDC
- connector connection type:
- For conductor
- contact material:
- Brass
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- DE
- depth:
- 30 mm / 1.181 inch
- fine stranded conductor:
- 0.75 1.5 mm / 18 16 AWG
- fire load:
- 0.273 MJ
- flammability class per ul94:
- V0
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +85 C
- material group:
- I
- mounting type:
- Mounting flange
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- pole no:
- 6
- rated current:
- 0.416666666666667
- rated current csa use group c:
- 0.416666666666667
- rated current ul use group c:
- 0.416666666666667
- rated surge voltage ii 2:
- 6 kV
- rated surge voltage iii 2:
- 6 kV
- rated surge voltage iii 3:
- 6 kV
- rated voltage csa use group c:
- 600 V
- rated voltage iii 2:
- 630 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- IEC/EN 60664-1
- weight:
- 11.728 g
- width:
- 43 mm / 1.693 inch
