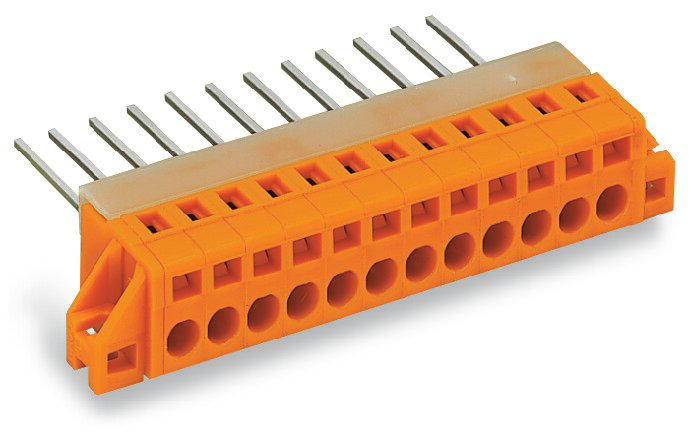

WAGO 731-172/048-000 Feedthrough Terminal Block, 12-Pole, 2.5 mm², CAGE CLAMP®, Orange
Wago
$30.67
- Feedthrough PCB terminal strips with screwdriver-actuated CAGE CLAMP<sup></sup>
- With flanges for PCB or front-panel mounting either flush with enclosure or protruding
The WAGO component equivalent to 731172048000 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and ease of installation, making it a preferred choice for professionals in the industry. It is compatible with a range of systems and can be used in different settings to enhance performance and reliability.
- actuation type:
- Operating tool
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Orange
- connection technology:
- CAGE CLAMP
- connection technology 2:
- Wire-wrap pin
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- DE
- depth:
- 15.5 mm / 0.61 inch
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 2.5 mm
- fire load:
- 0.292 MJ
- flammability class per ul94:
- V0
- height:
- 14.3 mm / 0.563 inch
- housing sheet thickness:
- 1.5 1.5 mm / 0.059 0.059 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- mounting type:
- Mounting flange || Feed-through mounting || Panel mounting
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 320 V
- packaging type:
- Box
- pin spacing:
- 5.08 mm / 0.2 inch
- pole no:
- 12
- rated current:
- 0.208333333333333
- rated current csa use group b:
- 0.208333333333333
- rated current ul use group b:
- 0.208333333333333
- rated current ul use group c:
- 0.208333333333333
- rated current ul use group d:
- 0.208333333333333
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage csa use group b:
- 300 V
- rated voltage iii 2:
- 320 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group c:
- 150 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 19.700 g
- width:
- 76.16 mm / 2.998 inch
