Wago

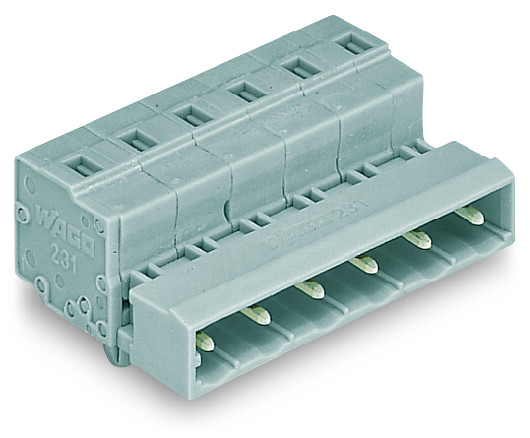

WAGO 731-607/018-000

SKU:

731-607/018-000

UPC:

MPN:

731-607/018-000

Condition:

New

actuation type:

Operating tool

approvals per:

UL 1059

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Gray

conductor entry direction to mating direction:

0

connection technology:

CAGE CLAMP

connector connection type:

For conductor

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

contact type pluggable connector:

Male connector/plug

country of origin sales organisation germany:

DE

depth:

27.5 mm / 1.083 inch

fine stranded conductor:

0.08 2.5 mm / 28 12 AWG

fine stranded conductor with insulated ferrule:

0.25 1.5 mm

fine stranded conductor with uninsulated ferrule:

0.25 2.5 mm

fire load:

0.241 MJ

flammability class per ul94:

V0

height:

18.8 mm / 0.74 inch

height from the surface:

14.3 mm / 0.563 inch

housing sheet thickness:

0.6 1.2 mm / 0.024 0.047 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +100 C

locking of plug in connection:

Without

material group:

I

mismating protection:

No

mounting type:

Snap-in foot || Panel mounting

nominal voltage ii 2:

1000 V

nominal voltage iii 3:

500 V

packaging type:

Box

pin spacing:

7.5 mm / 0.295 inch

pole no:

7

rated current:

0

rated current csa use group b:

15 A

rated current csa use group d:

0.416666666666667

rated current ul 1977:

15 A

rated current ul use group b:

15 A

rated current ul use group d:

0.416666666666667

rated surge voltage ii 2:

6 kV

rated surge voltage iii 2:

6 kV

rated surge voltage iii 3:

6 kV

rated voltage csa use group b:

300 V

rated voltage csa use group d:

300 V

rated voltage iii 2:

630 V

rated voltage ul 1977:

600 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

safety information 1:

The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure

solid conductor:

0.08 2.5 mm / 28 12 AWG

strip length:

8 9 mm / 0.31 0.35 inch

weight:

13.210 g

width:

53.2 mm / 2.094 inch
