Wago

WAGO 733-107/037-000

(No reviews yet) Write a Review
SKU:
733-107/037-000
MPN:
733-107/037-000
Condition:
New
actuation type:
Operating tool
approvals per:
UL 1059
clamping spring material:
Chrome nickel spring steel (CrNi)
color:
Light gray
conductor entry direction to mating direction:
0
connection technology:
CAGE CLAMP
connector connection type:
For conductor
contact material:
Copper alloy
contact plating:
Tin-plated
contact type pluggable connector:
Female connector/socket
country of origin sales organisation germany:
DE
depth:
17.1 mm / 0.673 inch
fine stranded conductor:
0.08 0.5 mm / 28 20 AWG
fine stranded conductor with insulated ferrule:
0.25 0.34 mm
fine stranded conductor with uninsulated ferrule:
0.25 0.34 mm
fire load:
0.067 MJ
flammability class per ul94:
V0
height:
11.8 mm / 0.465 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 2) Overvoltage category III / Pollution degree 2
limit temperature range:
-60 +100 C
locking of plug in connection:
Locking lever
material group:
I
mismating protection:
Yes
nominal voltage ii 2:
320 V
nominal voltage iii 3:
100 V
packaging type:
Box
pin spacing:
2.5 mm / 0.098 inch
pole no:
7
rated current:
0.25
rated current csa use group b:
0.166666666666667
rated current ul use group b:
0.166666666666667
rated surge voltage ii 2:
2.5 kV
rated surge voltage iii 2:
2.5 kV
rated surge voltage iii 3:
2.5 kV
rated voltage csa use group b:
150 V
rated voltage iii 2:
160 V
rated voltage ul use group b:
150 V
ratings per:
IEC/EN 60664-1
safety information 1:
The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
solid conductor:
0.08 0.5 mm / 28 20 AWG
strip length:
5 6 mm / 0.2 0.24 inch
weight:
3.481 g
width:
29.3 mm / 1.154 inch
  • Wago 733-107/037-000
  • Wago 733-107/037-000
  • Wago 733-107/037-000
$6.56

Description

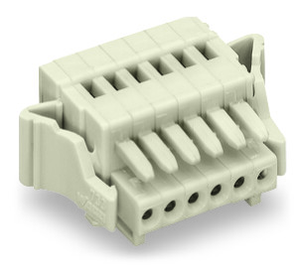

1-conductor female connector; CAGE CLAMP; 0.5 mm²; Pin spacing 2.5 mm; 7-pole; 100% protected against mismating; Lateral locking levers; 0,50 mm²; light gray.

The WAGO component equivalent to 733107037000 is a specific part used in electrical and electronic applications, known for its reliability and efficiency. This component is typically utilized in various industrial and automation systems, providing secure and maintenance-free connections. It is designed to meet high standards of performance and safety, ensuring optimal functionality in demanding environments. The equivalent part offers similar specifications and compatibility, making it a suitable replacement for the original WAGO component.
