WAGO 733-362/105-604/997-406 2-Pole THR Male Header, 2.5mm Pitch, 6A, Tape-and-Reel, Pack of 300
Wago
$513.00

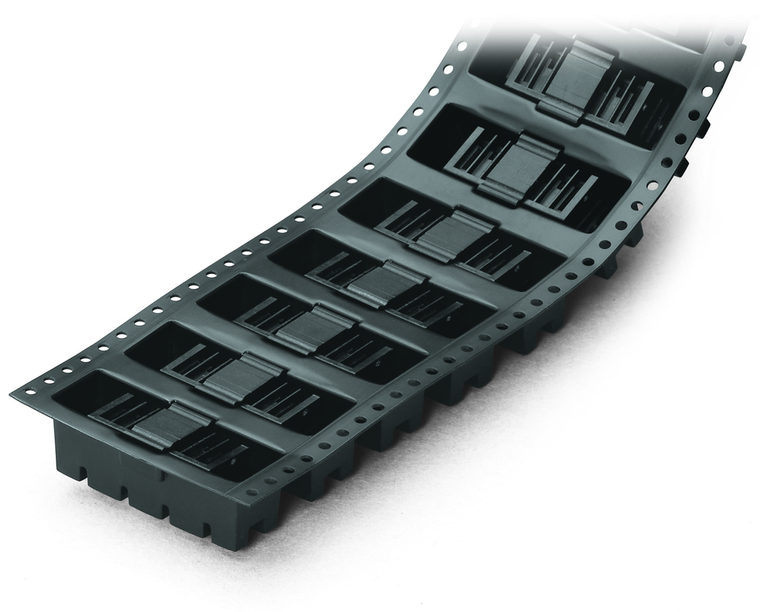

THR male header; 0.8 x 0.8 mm solder pin; angled; 100% protected against mismating; in tape-and-reel packaging; Pin spacing 2.5 mm; 2-pole; black.
The WAGO component equivalent to 733362105604997406 is a specific part or product within the WAGO catalog, which is known for its high-quality electrical interconnection and automation solutions. This component likely serves a particular function in electrical systems, such as connecting wires, facilitating signal transmission, or integrating automation processes. WAGO components are widely used in various industries for their reliability and efficiency in electrical and automation applications.
- approvals per:
- CSA
- color:
- Black
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- DE
- depth:
- 8.9 mm / 0.35 inch
- fire load:
- 0.013 MJ
- flammability class per ul94:
- V0
- height:
- 10.2 mm / 0.402 inch
- height from the surface:
- 7.8 mm / 0.307 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- material group:
- I
- mating direction to the pcb:
- 0
- mismating protection:
- Yes
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 80 V
- number of solder pins per potential:
- 1
- packaging type:
- Bag
- pcb contact:
- THR
- pin spacing:
- 2.5 mm / 0.098 inch
- plated through hole diameter thr:
- 1.2 (+0.1) mm
- pole no:
- 2
- rated current:
- 0.25
- rated current csa use group b:
- 0.166666666666667
- rated current ul use group b:
- 0.166666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 150 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 150 V
- ratings per:
- IEC/EN 60664-1
- reel diameter of tape and reel packaging:
- 330 mm
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solder pin arrangement:
- Over the entire male connector (in-line)
- solder pin dimensions:
- 0.8 x 0.8 mm
- solder pin length:
- 2.4 mm
- tape width:
- 44 mm
- weight:
- 0.430 g
- width:
- 7.5 mm / 0.295 inch
