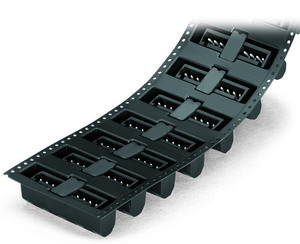

WAGO 734-136/105-604/997-407 6-Pole THR Male Header, 3.5mm Pin Spacing, Tape-and-Reel Packaging, Pack of 200
Wago
$712.00
THR male header1.0 x 1.0 mm solder pin straight, black.
The WAGO component equivalent to 734136105604997407 is a specific part or module used in electrical and automation systems. WAGO is known for producing high-quality components such as terminal blocks, connectors, and automation technology. This particular component would be part of their extensive product line designed to ensure reliable and efficient electrical connections and automation solutions.
- approvals per:
- UL 1059
- color:
- Black
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- DE
- depth:
- 8.5 mm / 0.335 inch
- fire load:
- 0.034 MJ
- flammability class per ul94:
- V0
- height:
- 12.7 mm / 0.5 inch
- height from the surface:
- 10.3 mm / 0.406 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mating direction to the pcb:
- 90
- mismating protection:
- Yes
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 160 V
- number of solder pins per potential:
- 1
- packaging type:
- Bag
- pcb contact:
- THR
- pin spacing:
- 3.5 mm / 0.138 inch
- plated through hole diameter thr:
- 1.4 (+0.1) mm
- pole no:
- 6
- rated current:
- 0.416666666666667
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- reel diameter of tape and reel packaging:
- 330 mm
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solder pin arrangement:
- Over the entire male connector (in-line)
- solder pin dimensions:
- 1 x 1 mm
- solder pin length:
- 2.4 mm
- tape width:
- 56 mm
- weight:
- 1.408 g
- width:
- 23.4 mm / 0.921 inch
