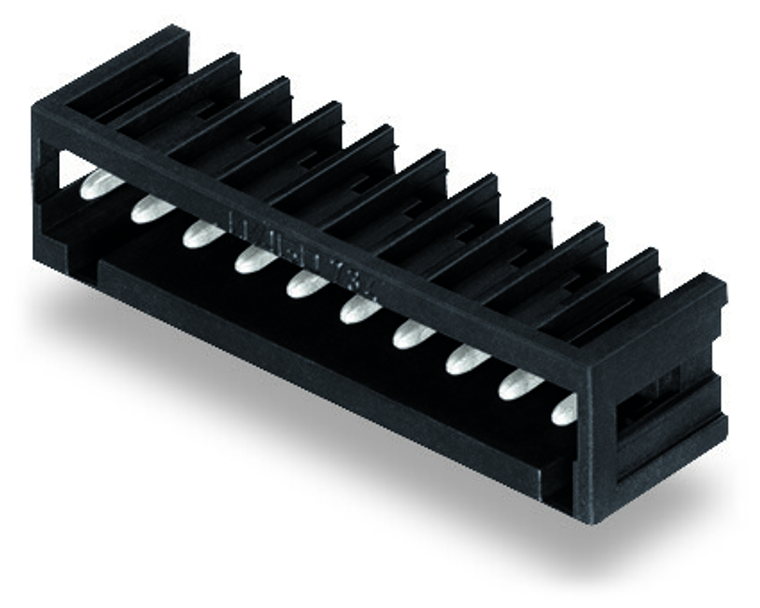

WAGO 734-170/105-604 THR male header, 10-pole, 3.5 mm pin spacing, angled, 1.0 x 1.0 mm solder pins, black
Wago
$4.69
THR male header; 1.0 x 1.0 mm solder pin; angled; 100% protected against mismating; Pin spacing 3.5 mm; 10-pole; black.
The WAGO component equivalent to 734170105604 is a specific part or module used in electrical and automation systems. It is designed to provide reliable connectivity and functionality within these systems, ensuring efficient performance and integration. This component is likely part of a broader range of products offered by WAGO, known for their quality and innovation in the field of electrical interconnection and automation technology.
- approvals per:
- CSA
- color:
- Black
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- DE
- depth:
- 10.3 mm / 0.406 inch
- fire load:
- 0.055 MJ
- flammability class per ul94:
- V0
- height:
- 10.9 mm / 0.429 inch
- height from the surface:
- 8.5 mm / 0.335 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mating direction to the pcb:
- 0
- mismating protection:
- Yes
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 160 V
- number of solder pins per potential:
- 1
- packaging type:
- Box
- pcb contact:
- THR
- pin spacing:
- 3.5 mm / 0.138 inch
- plated through hole diameter thr:
- 1.4 (+0.1) mm
- pole no:
- 10
- rated current:
- 0.416666666666667
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solder pin arrangement:
- Over the entire male connector (in-line)
- solder pin dimensions:
- 1 x 1 mm
- solder pin length:
- 2.4 mm
- weight:
- 3.160 g
- width:
- 37.4 mm / 1.472 inch
