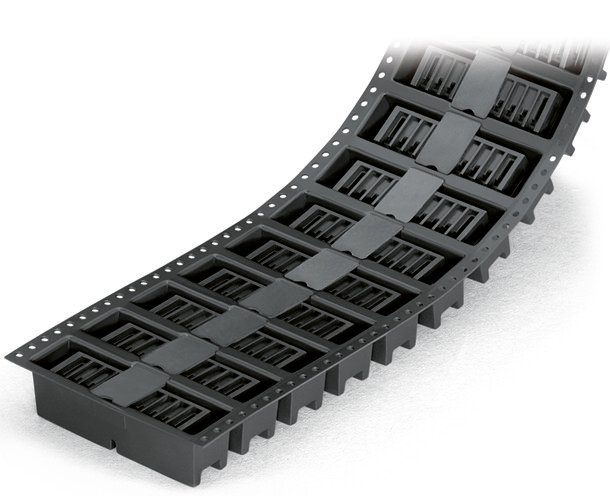

Wago 734-269/105-604/997-407 THR male header; 1.0 x 1.0 mm solder pin; angled; 100% protected against mismating; in tape-and-reel packaging; Pin spacing 3.81 mm; 9-pole; black Pack of 280
Wago 734-269/105-604/997-407 THR male header; 1.0 x 1.0 mm solder pin; angled; 100% protected against mismating; in tape-and-reel packaging; Pin spacing 3.81 mm; 9-pole; black Pack of 280
SKU:
734-269/105-604/997-407
UPC:
MPN:
734-269/105-604/997-407
Condition:
New
approvals per:
UL 1059
color:
Black
connector connection type:
For PCB
contact material:
Electrolytic copper (ECu)
contact plating:
Tin-plated
contact type pluggable connector:
Male connector/plug
country of origin sales organisation germany:
DE
depth:
10.3 mm / 0.406 inch
fire load:
0.052 MJ
flammability class per ul94:
V0
height:
10.9 mm / 0.429 inch
height from the surface:
8.5 mm / 0.335 inch
insulation material:
Polyphthalamide (PPA GF)
legend ratings:
(III / 2) Overvoltage category III / Pollution degree 2
limit temperature range:
-60 +100 C
locking of plug in connection:
Without
material group:
I
mating direction to the pcb:
0
mismating protection:
Yes
nominal voltage ii 2:
320 V
nominal voltage iii 3:
160 V
number of solder pins per potential:
1
packaging type:
Bag
pcb contact:
THR
pin spacing:
3.81 mm / 0.15 inch
plated through hole diameter thr:
1.4 (+0.1) mm
pole no:
9
rated current:
0.416666666666667
rated current csa use group b:
0.416666666666667
rated current csa use group d:
0.416666666666667
rated current ul use group b:
0.416666666666667
rated current ul use group d:
0.416666666666667
rated surge voltage ii 2:
2.5 kV
rated surge voltage iii 2:
2.5 kV
rated surge voltage iii 3:
2.5 kV
rated voltage csa use group b:
300 V
rated voltage csa use group d:
300 V
rated voltage iii 2:
160 V
rated voltage ul use group b:
300 V
rated voltage ul use group d:
300 V
ratings per:
IEC/EN 60664-1
reel diameter of tape and reel packaging:
330 mm
safety information 1:
The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
