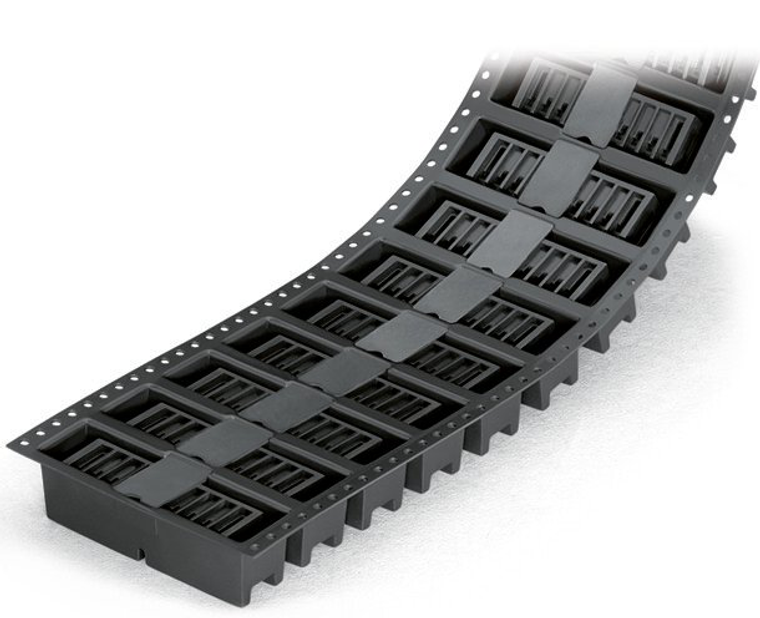

WAGO 734-270/105-604/997-407 pack of 280 THR male headers, 10-pole, 3.81 mm pitch, angled, 1.0 x 1.0 mm solder pins, 100% protected against mismating, tape-and-reel packaging
Wago
$1,534.40
THR male header; 1.0 x 1.0 mm solder pin; angled; 100% protected against mismating; in tape-and-reel packaging; Pin spacing 3.81 mm; 10-pole; black.
The WAGO component equivalent to 734270105604997407 is a specific part or module used in electrical and automation systems. WAGO is known for producing high-quality components that are essential for various industrial applications, including connectors, terminal blocks, and automation technology. This particular component is likely to be part of their extensive product line designed to ensure reliable and efficient electrical connections and automation processes.
- approvals per:
- UL 1059
- color:
- Black
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- DE
- depth:
- 10.3 mm / 0.406 inch
- fire load:
- 0.057 MJ
- flammability class per ul94:
- V0
- height:
- 10.9 mm / 0.429 inch
- height from the surface:
- 8.5 mm / 0.335 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mating direction to the pcb:
- 0
- mismating protection:
- Yes
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 160 V
- number of solder pins per potential:
- 1
- packaging type:
- Bag
- pcb contact:
- THR
- pin spacing:
- 3.81 mm / 0.15 inch
- plated through hole diameter thr:
- 1.4 (+0.1) mm
- pole no:
- 10
- rated current:
- 0.416666666666667
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- reel diameter of tape and reel packaging:
- 330 mm
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solder pin arrangement:
- Over the entire male connector (in-line)
- solder pin dimensions:
- 1 x 1 mm
- solder pin length:
- 2.4 mm
- tape width:
- 56 mm
- weight:
- 3.050 g
- width:
- 40.19 mm / 1.582 inch
