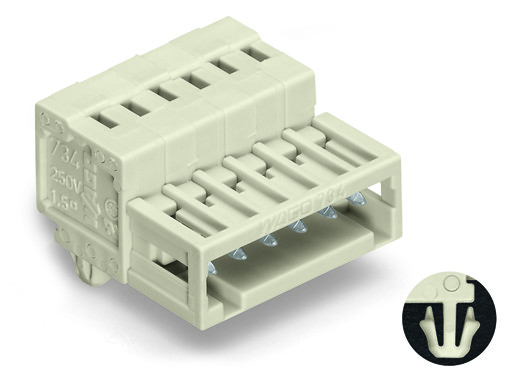

WAGO 734-312/018-000 12-Pole Male Connector, 1.5 mm², 3.5 mm Pin Spacing, Light Gray
Wago
$12.74
1-conductor male connector; CAGE CLAMP; 1.5 mm²; Pin spacing 3.5 mm; 12-pole; 100% protected against mismating; DIN-35 rail/panel mounting; Snap-in mounting feet; 1,50 mm²; light gray.
The WAGO component equivalent to 734312018000 is a specific part used in electrical and electronic applications, known for its reliability and efficiency. This component is typically utilized in various industrial and automation systems, providing secure and maintenance-free connections. It is designed to meet high standards of performance and safety, ensuring optimal functionality in demanding environments. The equivalent part number indicates that it matches the specifications and quality of the original WAGO component, making it a suitable replacement or alternative for users seeking consistent and dependable performance.
- actuation type:
- Operating tool
- approvals per:
- CSA
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- conductor entry direction to mating direction:
- 0
- connection technology:
- CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- PL
- depth:
- 22.3 mm / 0.878 inch
- fine stranded conductor:
- 0.08 1.5 mm / 28 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 1.5 mm
- fire load:
- 0.182 MJ
- flammability class per ul94:
- V0
- height:
- 17.9 mm / 0.705 inch
- height from the surface:
- 13.4 mm / 0.528 inch
- housing sheet thickness:
- 0.6 1.2 mm / 0.024 0.047 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mismating protection:
- Yes
- mounting type:
- Snap-in foot || Panel mounting
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 160 V
- note conductor cross section:
- Terminating 1.5 mm conductors is possible: however insulation diameter does not allow clamping units to be terminated in a row.
- packaging type:
- Box
- pin spacing:
- 3.5 mm / 0.138 inch
- pole no:
- 12
- rated current:
- 0.416666666666667
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solid conductor:
- 0.08 1.5 mm / 28 14 AWG
- strip length:
- 6 7 mm / 0.24 0.28 inch
- weight:
- 9.934 g
- width:
- 44.4 mm / 1.748 inch
