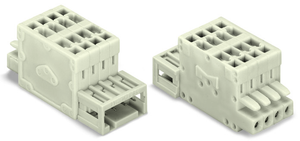

WAGO 734-362/008-000 2-conductor combi strip 100% protected against mismating, light gray
Wago
$8.87
2-conductor combi strip; 100% protected against mismating; Snap-in mounting feet; 1.5 mm²; 2-pole; Pin spacing 3.5 mm; light gray.
The WAGO component equivalent to 734362008000 is a specific part used in electrical and electronic applications. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various systems. This component is known for its high quality, durability, and ease of use, making it a preferred choice for professionals in the industry. It is compatible with a range of applications and meets the necessary standards and specifications required for optimal performance.
- actuation type:
- Operating tool
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- conductor entry direction to mating direction:
- 0
- connection technology:
- CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Copper alloy
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Distribution connector
- country of origin sales organisation germany:
- PL
- depth:
- 40.9 mm / 1.61 inch
- fine stranded conductor:
- 0.08 1.5 mm / 28 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 1.5 mm
- fire load:
- 0.090 MJ
- flammability class per ul94:
- V0
- height:
- 23 mm / 0.906 inch
- height from the surface:
- 18.5 mm / 0.728 inch
- housing sheet thickness:
- 0.6 1.2 mm / 0.024 0.047 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mismating protection:
- Yes
- mounting type:
- Snap-in foot || Panel mounting
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 160 V
- note conductor cross section:
- Terminating 1.5 mm conductors is possible: however insulation diameter does not allow clamping units to be terminated in a row.
- packaging type:
- Box
- pin spacing:
- 3.5 mm / 0.138 inch
- pole no:
- 2
- rated current:
- 0.416666666666667
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solid conductor:
- 0.08 1.5 mm / 28 14 AWG
- strip length:
- 6 7 mm / 0.24 0.28 inch
- weight:
- 5.349 g
- width:
- 9.85 mm / 0.388 inch
