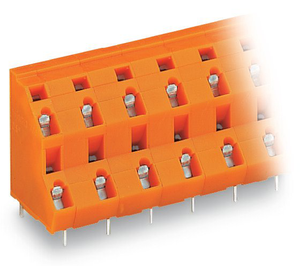

WAGO 736-803 Double-deck PCB terminal block; 2.5 mm²; Pin spacing 10.16 mm; 2 x 3-pole; CAGE CLAMP; 2,50 mm²; orange
Wago
$3.88
Double-deck PCB terminal block; 2.5 mm²; Pin spacing 10.16 mm; 6-pole; CAGE CLAMP; 2,50 mm²; orange.
The WAGO component equivalent to 736803 is a specific part used in electrical and electronic applications, known for its reliability and efficiency. This component is typically utilized in various industrial and automation systems, providing secure and maintenance-free connections. It is designed to meet high standards of performance and safety, ensuring optimal functionality in demanding environments. The equivalent part offers similar features and benefits, making it a suitable replacement or alternative for the original WAGO 736803 component.
- actuation type:
- Operating tool
- approvals per:
- CSA
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Orange
- conductor connection direction to pcb:
- 45
- connection technology:
- CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- PL
- depth:
- 21 mm / 0.827 inch
- drilled hole diameter with tolerance:
- 1.3 (+0.1) mm
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 2.5 mm
- fire load:
- 0.164 MJ
- flammability class per ul94:
- V0
- height:
- 30.5 mm / 1.201 inch
- height from the surface:
- 26.5 mm / 1.043 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 630 V
- note conductor cross section:
- 12 AWG: THHN, THWN
- number of solder pins per potential:
- 1
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 10.16 mm / 0.4 inch
- pole no:
- 6
- rated current:
- 21 A
- rated current 2:
- 21 A
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 8 kV
- rated surge voltage ii 2 2:
- 4 kV
- rated surge voltage iii 2:
- 8 kV
- rated surge voltage iii 2 2:
- 4 kV
- rated surge voltage iii 3:
- 8 kV
- rated surge voltage iii 3 2:
- 4 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage ii 2 2:
- 630 V
- rated voltage iii 2:
- 1000 V
- rated voltage iii 2 2:
- 320 V
- rated voltage iii 3 2:
- 320 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings note:
- Between the modules
- ratings note 2:
- Between the decks
- ratings per:
- IEC/EN 60664-1 || IEC/EN 60664-1
- solder pin arrangement:
- Within the terminal block (in-line)
- solder pin dimensions:
- 0.7 x 0.7 mm
- solder pin length:
- 4 mm
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 5 6 mm / 0.2 0.24 inch
- weight:
- 8.662 g
- width:
- 26.32 mm / 1.036 inch
