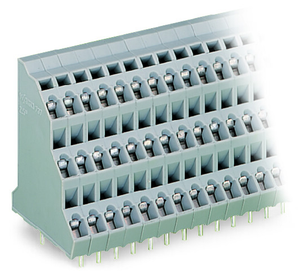

Triple-deck PCB terminal block; 2.5 mm; Pin spacing 5.08 mm; 3 x 16-pole; CAGE CLAMPp>
- PCB terminal strips with screwdriver-actuated CAGE CLAMP<sup></sup>
- High-density, double-deck design for space-efficient wiring of multiple conductors in confined areas
- Custom marking for all termination levels
The WAGO component equivalent to 737316 is a specific type of electrical connector or terminal block used for various wiring applications. It is designed to provide secure and reliable connections in electrical circuits, ensuring efficient conductivity and safety. This component is commonly used in industrial, commercial, and residential electrical installations, offering ease of use and versatility for different wiring needs.
- actuation type:
- Operating tool
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Orange
- conductor connection direction to pcb:
- 45
- connection technology:
- CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- PL
- depth:
- 31 mm / 1.22 inch
- drilled hole diameter with tolerance:
- 1.3 (+0.1) mm
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 2.5 mm
- fire load:
- 0.953 MJ
- flammability class per ul94:
- V0
- height:
- 44 mm / 1.732 inch
- height from the surface:
- 40 mm / 1.575 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 250 V
- note conductor cross section:
- 12 AWG: THHN, THWN
- number of solder pins per potential:
- 1
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 5.08 mm / 0.2 inch
- pole no:
- 48
- rated current:
- 21 A
- rated current 2:
- 21 A
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage ii 2 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 2 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated surge voltage iii 3 2:
- 4 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage ii 2 2:
- 630 V
- rated voltage iii 2:
- 320 V
- rated voltage iii 2 2:
- 320 V
- rated voltage iii 3 2:
- 320 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings note:
- Between the modules
- ratings note 2:
- Between the decks
- ratings per:
- IEC/EN 60664-1 || IEC/EN 60664-1
- solder pin arrangement:
- Within the terminal block (in-line)
- solder pin dimensions:
- 0.7 x 0.7 mm
- solder pin length:
- 4 mm
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 5 6 mm / 0.2 0.24 inch
- weight:
- 66.208 g
- width:
- 82.28 mm / 3.239 inch
