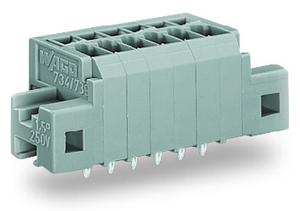

WAGO 739-308/001-000 PCB terminal block; 1.5 mm²; Pin spacing 3.5 mm; 8-pole; CAGE CLAMP; clamping collar; 1,50 mm²; gray
Wago
$3.89
PCB terminal block; 1.5 mm; Pin spacing 3.5 mm; 8-pole; CAGE CLAMP clamping collar.
The WAGO component equivalent to 739308001000 is a specific part used in electrical and electronic applications, known for its reliability and efficiency. This component is typically utilized in various industrial and automation systems, providing secure and maintenance-free connections. It is designed to meet high standards of performance and safety, ensuring optimal functionality in demanding environments. The equivalent part number indicates that it matches the specifications and quality of the original WAGO component, making it a suitable replacement or alternative for users seeking consistent and dependable performance in their systems.
- actuation type:
- Operating tool
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Gray
- conductor connection direction to pcb:
- 90
- connection technology:
- CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- PL
- depth:
- 13.4 mm / 0.528 inch
- drilled hole diameter with tolerance:
- 1.1 (+0.1) mm
- fine stranded conductor:
- 0.08 1.5 mm / 28 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 1.5 mm
- fire load:
- 0.116 MJ
- flammability class per ul94:
- V0
- height:
- 15.7 mm / 0.618 inch
- height from the surface:
- 12.3 mm / 0.484 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- mounting type:
- Mounting flange || Panel mounting
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 160 V
- note conductor cross section:
- 14 AWG: THHN, THWN
- number of solder pins per potential:
- 1
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 3.5 mm / 0.138 inch
- pole no:
- 8
- rated current:
- 17.5 A
- rated current ul use group b:
- 15 A
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 0.6 x 0.8 mm
- solder pin length:
- 3.4 mm
- solid conductor:
- 0.08 1.5 mm / 28 14 AWG
- strip length:
- 5 6 mm / 0.2 0.24 inch
- weight:
- 6.016 g
- width:
- 42.8 mm / 1.685 inch
