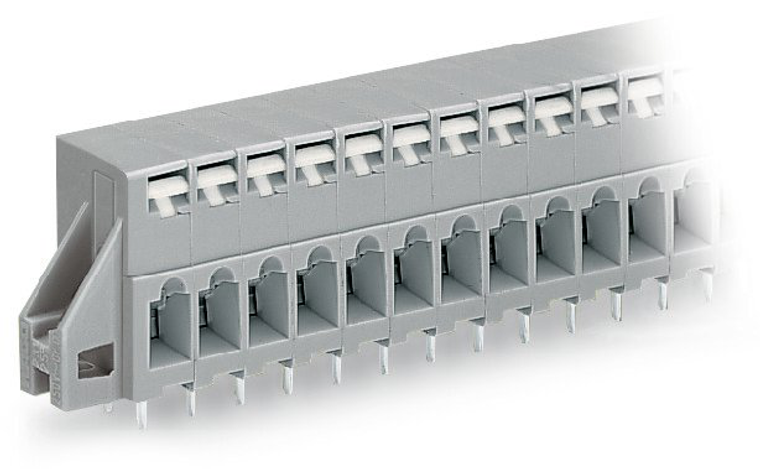

PCB terminal blockpush-button 2.5 mm Pin spacing 5 mm 9-pole, gray
- Feedthrough PCB terminal strips with push-button actuated CAGE CLAMP<sup></sup>
- Simple, push-button wiring
- Test slot integrated into upper-portion of conductor entry for test pins
- Mounting flanges for additional mechanical stability
The WAGO component equivalent to the 741139 is a digital logic device used in various electronic applications. It functions similarly to the 741139, which is a dual 1-of-4 decoder/demultiplexer. This means it can take a binary input and activate one of several outputs, making it useful for tasks that require selecting one output from multiple options based on binary input signals. The WAGO component offers comparable functionality and can be used as a direct replacement in circuits that require the 741139, ensuring compatibility and performance in digital logic systems.
- actuation type:
- Push-button
- approvals per:
- CSA
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Gray
- conductor connection direction to pcb:
- 0
- connection technology:
- CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CH
- depth:
- 12.8 mm / 0.504 inch
- drilled hole diameter with tolerance:
- 1.1 (+0.1) mm
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 1.5 mm
- fire load:
- 0.231 MJ
- flammability class per ul94:
- V0
- height:
- 22.5 mm / 0.886 inch
- height from the surface:
- 18.5 mm / 0.728 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- mounting type:
- Mounting flange || Feed-through mounting || Panel mounting
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 250 V
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 5 mm / 0.197 inch
- pole no:
- 9
- rated current:
- 16 A
- rated current csa use group b:
- 16 A
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 320 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 0.7 x 0.7 mm
- solder pin length:
- 4 mm
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 5 6 mm / 0.2 0.24 inch
- weight:
- 12.564 g
- width:
- 54.4 mm / 2.142 inch
