Wago

WAGO 741-605 Pack of 25

(No reviews yet) Write a Review
SKU:
741-605
MPN:
741-605
Condition:
New
actuation type:
Push-button
approvals per:
UL 1059
clamping spring material:
Chrome nickel spring steel (CrNi)
color:
Orange
conductor connection direction to pcb:
0
connection technology:
CAGE CLAMP
contact material:
Electrolytic copper (ECu)
contact plating:
Tin-plated
country of origin sales organisation germany:
CH
depth:
12.8 mm / 0.504 inch
drilled hole diameter with tolerance:
1.1 (+0.1) mm
fine stranded conductor:
0.08 2.5 mm / 28 12 AWG
fine stranded conductor with insulated ferrule:
0.25 1.5 mm
fine stranded conductor with uninsulated ferrule:
0.25 1.5 mm
fire load:
0.223 MJ
flammability class per ul94:
V0
height:
22.5 mm / 0.886 inch
height from the surface:
18.5 mm / 0.728 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 2) Overvoltage category III / Pollution degree 2
limit temperature range:
-60 +105 C
material group:
I
nominal voltage ii 2:
1000 V
nominal voltage iii 3:
630 V
number of solder pins per potential:
2
packaging type:
Box
pcb contact:
THT
pin spacing:
10.16 mm / 0.4 inch
pole no:
5
rated current:
16 A
rated current csa use group b:
16 A
rated current csa use group d:
0.416666666666667
rated current ul use group b:
0.416666666666667
rated current ul use group d:
0.416666666666667
rated surge voltage ii 2:
8 kV
rated surge voltage iii 2:
8 kV
rated surge voltage iii 3:
8 kV
rated voltage csa use group b:
300 V
rated voltage csa use group d:
300 V
rated voltage iii 2:
1000 V
rated voltage ul use group b:
300 V
rated voltage ul use group d:
300 V
ratings per:
IEC/EN 60664-1
solder pin arrangement:
Over the entire terminal strip (in-line)
solder pin dimensions:
0.7 x 0.7 mm
solder pin length:
4 mm
solid conductor:
0.08 2.5 mm / 28 12 AWG
strip length:
5 6 mm / 0.2 0.24 inch
weight:
9.516 g
width:
47.14 mm / 1.856 inch
  • Wago 741-605 Pack of 25
  • Wago 741-605 Pack of 25
$109.00

Description

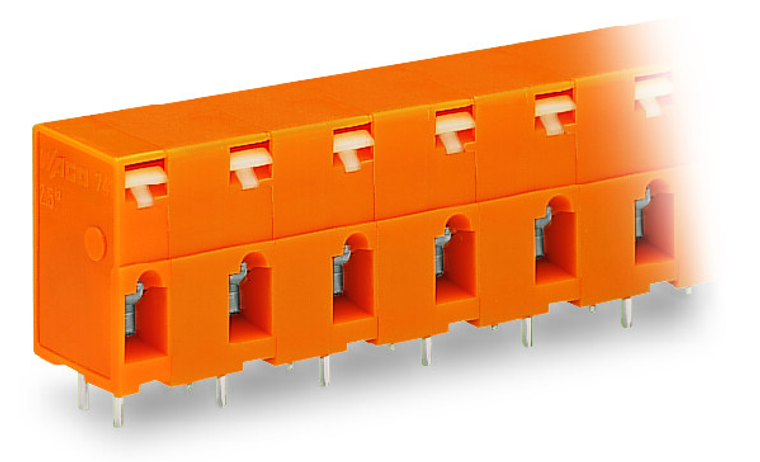

Through-panel PCB terminal strip; 2 solder pins/pole; 5-pole; with integrated push-buttons; pin spacing 10.16 mm / 0.4 in; orange.

The WAGO component equivalent to 741605 is a specific part used in electrical and electronic applications, known for its reliability and efficiency. This component is typically utilized in various industrial and automation systems, providing secure and maintenance-free connections. It is designed to meet high standards of performance and safety, ensuring optimal functionality in complex electrical circuits. The WAGO 741605 equivalent is favored for its ease of use, durability, and compatibility with a wide range of devices and systems, making it a preferred choice for professionals in the field.
