WAGO 741-626 Pack of 15
Wago
$90.15

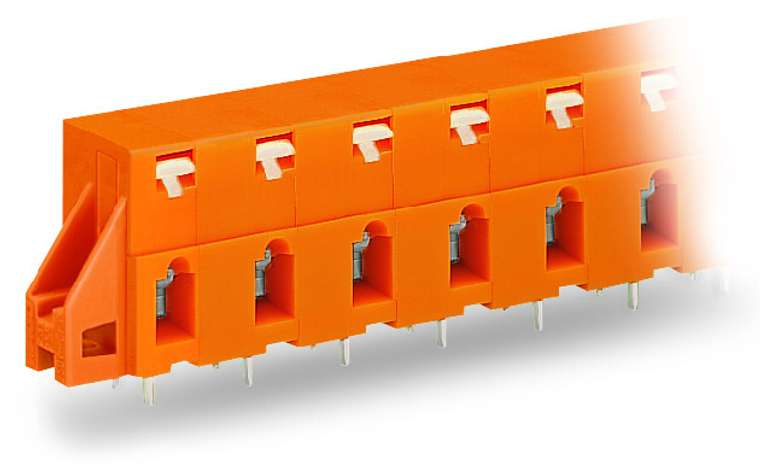

Through-panel PCB terminal strip; 2 solder pins/pole; 6-pole; with integrated push-buttons; pin spacing 10.16 mm / 0.4 in; with fixing flanges; orange.
The WAGO component equivalent to the 741626 is a specific type of electronic component used in various applications. It is designed to provide reliable and efficient performance, similar to the 741626, which is known for its functionality in electronic circuits. This WAGO component ensures compatibility and can be used as a direct replacement, offering the same level of quality and operational standards required in electronic systems.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Orange
- conductor connection direction to pcb:
- 0
- connection technology:
- CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CH
- depth:
- 12.8 mm / 0.504 inch
- drilled hole diameter with tolerance:
- 1.1 (+0.1) mm
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 1.5 mm
- fire load:
- 0.295 MJ
- flammability class per ul94:
- V0
- height:
- 22.5 mm / 0.886 inch
- height from the surface:
- 18.5 mm / 0.728 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- mounting type:
- Mounting flange || Feed-through mounting || Panel mounting
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 630 V
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 10.16 mm / 0.4 inch
- pole no:
- 6
- rated current:
- 16 A
- rated current csa use group b:
- 16 A
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 8 kV
- rated surge voltage iii 2:
- 8 kV
- rated surge voltage iii 3:
- 8 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 1000 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 0.7 x 0.7 mm
- solder pin length:
- 4 mm
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 5 6 mm / 0.2 0.24 inch
- weight:
- 12.299 g
- width:
- 65.2 mm / 2.567 inch
