Wago

WAGO 741-902 Pack of 100

(No reviews yet) Write a Review
SKU:
741-902
MPN:
741-902
Condition:
New
actuation type:
Push-button
approvals per:
UL 1059
clamping spring material:
Chrome nickel spring steel (CrNi)
color:
Gray
conductor connection direction to pcb:
0
connection technology:
CAGE CLAMP
contact material:
Electrolytic copper (ECu)
contact plating:
Tin-plated
country of origin sales organisation germany:
CH
depth:
12.8 mm / 0.504 inch
drilled hole diameter with tolerance:
1.1 (+0.1) mm
fine stranded conductor:
0.08 2.5 mm / 28 12 AWG
fine stranded conductor with insulated ferrule:
0.25 1.5 mm
fine stranded conductor with uninsulated ferrule:
0.25 1.5 mm
fire load:
0.032 MJ
flammability class per ul94:
V0
height:
22.5 mm / 0.886 inch
height from the surface:
18.5 mm / 0.728 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 2) Overvoltage category III / Pollution degree 2
limit temperature range:
-60 +105 C
material group:
I
nominal voltage ii 2:
800 V
nominal voltage iii 3:
400 V
number of solder pins per potential:
2
packaging type:
Box
pcb contact:
THT
pin spacing:
7.5 mm / 0.295 inch
pole no:
1
rated current:
16 A
rated current csa use group b:
16 A
rated current csa use group d:
0.416666666666667
rated current ul use group b:
0.416666666666667
rated current ul use group d:
0.416666666666667
rated surge voltage ii 2:
6 kV
rated surge voltage iii 2:
6 kV
rated surge voltage iii 3:
6 kV
rated voltage csa use group b:
300 V
rated voltage csa use group d:
300 V
rated voltage iii 2:
400 V
rated voltage ul use group b:
300 V
rated voltage ul use group d:
300 V
ratings per:
IEC/EN 60664-1
solder pin arrangement:
Within the terminal block (in-line)
solder pin dimensions:
0.7 x 0.7 mm
solder pin length:
4 mm
solid conductor:
0.08 2.5 mm / 28 12 AWG
strip length:
5 6 mm / 0.2 0.24 inch
weight:
1.614 g
width:
7.5 mm / 0.295 inch
$84.10

Description

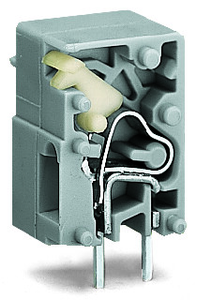

Stackable PCB terminal blockpush-button 2.5 mm Pin spacing 7.5 mm 1-pole, gray

  • Feedthrough terminal blocks with push-button actuated CAGE CLAMP<sup></sup>
  • Simple, push-button wiring
  • Test slot integrated into upper-portion of conductor entry for test pins
.

The WAGO component equivalent to 741902 is a specific type of electrical connector or terminal block used in various industrial and automation applications. It is designed to provide secure and reliable connections for electrical wiring, ensuring efficient and safe operation of electrical systems. This component is known for its ease of use, durability, and compatibility with a wide range of wire sizes and types, making it a versatile choice for engineers and technicians in the field.
