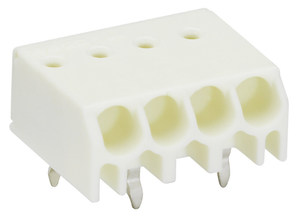

WAGO 744-304 PCB Terminal Block; 1.5 mm²; 3.5 mm Pin Spacing; 4-Pole; PUSH WIRE®; White
Wago
$0.86
PCB terminal block; 1.5 mm; Pin spacing 3.5 mm; 4-pole; PUSH WIRE; 1,50 mm; white.
The WAGO component equivalent to 744304 is a specific type of electrical connector or terminal block used in various industrial and commercial applications. It is designed to provide secure and reliable connections for electrical wiring, ensuring efficient and safe transmission of electrical signals. This component is known for its ease of use, durability, and compatibility with a wide range of wire sizes and types, making it a versatile choice for electricians and engineers. The equivalent model to 744304 maintains these high standards, offering similar performance and reliability for users seeking a dependable solution for their electrical connection needs.
- actuation type:
- Operating tool
- approvals per:
- UL 1059
- clamping spring material:
- Copper alloy
- color:
- White
- conductor connection direction to pcb:
- 0
- connection technology:
- PUSH WIRE
- contact material:
- Copper alloy
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CH
- depth:
- 12.5 mm / 0.492 inch
- drilled hole diameter with tolerance:
- 1.1 (-0.1) mm
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 10.1 mm / 0.398 inch
- height from the surface:
- 6.6 mm / 0.26 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 250 V
- number of solder pins per potential:
- 1
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 3.5 mm / 0.138 inch
- pole no:
- 4
- rated current:
- 0.125
- rated current ul use group b:
- 0.25
- rated current ul use group d:
- 0.25
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage iii 2:
- 320 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (staggered)
- solder pin dimensions:
- 0.35 x 0.9 mm
- solder pin length:
- 3.5 mm
- solid conductor:
- 0.5 1.5 mm / 20 16 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 1.150 g
- width:
- 14.9 mm / 0.587 inch
