Wago

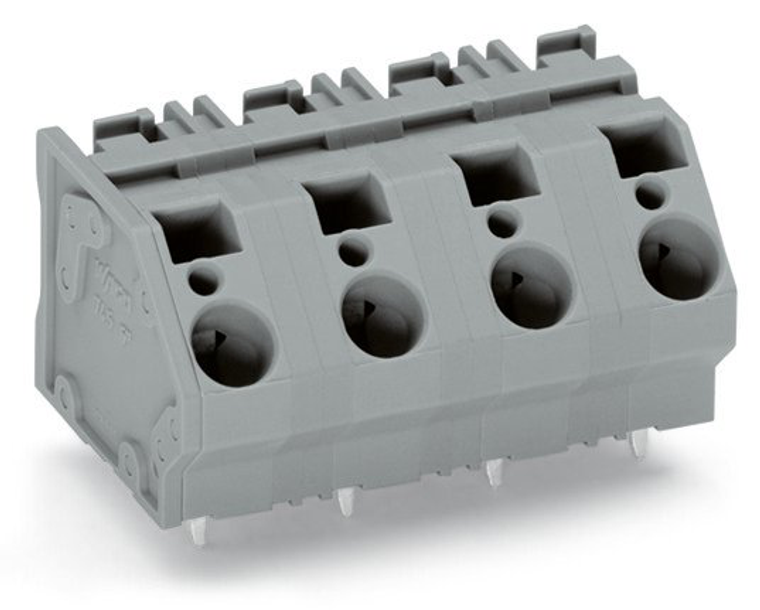

WAGO 745-1402

SKU:

745-1402

UPC:

MPN:

745-1402

Condition:

New

actuation type:

Operating tool

approvals per:

CSA

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Gray

conductor connection direction to pcb:

45

connection technology:

CAGE CLAMP

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

PL

depth:

29.1 mm / 1.146 inch

drilled hole diameter with tolerance:

1.8 (+0.1) mm

fine stranded conductor:

0.2 6 mm / 24 10 AWG

fine stranded conductor with insulated ferrule:

0.25 4 mm

fine stranded conductor with uninsulated ferrule:

0.25 4 mm

fire load:

0.221 MJ

flammability class per ul94:

V0

height:

27.5 mm / 1.083 inch

height from the surface:

23 mm / 0.906 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

material group:

I

nominal voltage ii 2:

1000 V

nominal voltage iii 3:

1000 V

number of solder pins per potential:

2

packaging type:

Box

pcb contact:

THT

pin spacing:

12.5 mm / 0.492 inch

pole no:

2

rated current:

41 A

rated current csa use group b:

30 A

rated current csa use group c:

30 A

rated current ul use group b:

30 A

rated current ul use group c:

30 A

rated surge voltage ii 2:

8 kV

rated surge voltage iii 2:

8 kV

rated surge voltage iii 3:

8 kV

rated voltage csa use group b:

600 V

rated voltage csa use group c:

600 V

rated voltage iii 2:

1000 V

rated voltage ul use group b:

600 V

rated voltage ul use group c:

600 V

ratings per:

IEC/EN 60664-1

solder pin arrangement:

Over the entire terminal strip (in-line)

solder pin dimensions:

1 x 1.4 mm

solder pin length:

4.5 mm

solid conductor:

0.2 6 mm / 24 10 AWG

strip length:

11 12 mm / 0.43 0.47 inch

weight:

11.999 g

width:

21.6 mm / 0.85 inch
