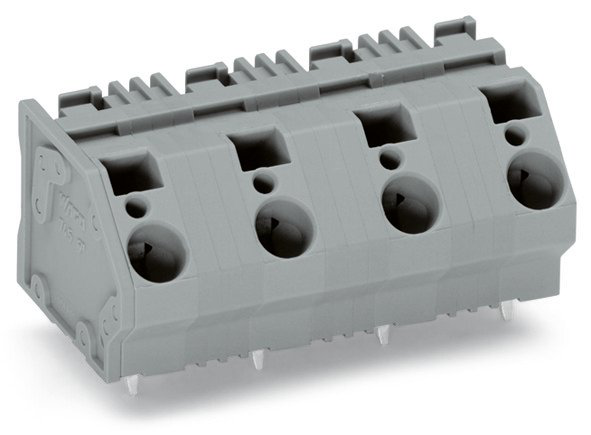

WAGO 745-1454 4-Pole PCB Terminal Block, 6mm², 15mm Pin Spacing, Cage Clamp
Wago
$7.10
PCB terminal block; 6 mm²; Pin spacing 15 mm; 4-pole; CAGE CLAMP; commoning option; 6,00 mm²; gray.
The WAGO component equivalent to 7451454 is a specific part or model within the WAGO product line, which is known for its high-quality electrical interconnection and automation solutions. This component is likely used in various industrial and commercial applications, providing reliable performance and compatibility with other WAGO products. The exact specifications and features of this component would align with the standards and requirements typical of WAGO's offerings, ensuring it meets the needs of its intended use cases.
- actuation type:
- Operating tool
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Gray
- conductor connection direction to pcb:
- 45
- connection technology:
- CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- PL
- depth:
- 29.1 mm / 1.146 inch
- drilled hole diameter with tolerance:
- 1.8 (+0.1) mm
- fine stranded conductor:
- 0.2 6 mm / 24 10 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 4 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 4 mm
- fire load:
- 0.556 MJ
- flammability class per ul94:
- V0
- height:
- 27.5 mm / 1.083 inch
- height from the surface:
- 23 mm / 0.906 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 1000 V
- number of solder pins per potential:
- 4
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 15 mm / 0.591 inch
- pole no:
- 4
- rated current:
- 41 A
- rated current csa use group b:
- 30 A
- rated current csa use group c:
- 30 A
- rated current ul use group b:
- 30 A
- rated current ul use group c:
- 30 A
- rated surge voltage ii 2:
- 8 kV
- rated surge voltage iii 2:
- 8 kV
- rated surge voltage iii 3:
- 8 kV
- rated voltage csa use group b:
- 600 V
- rated voltage csa use group c:
- 600 V
- rated voltage iii 2:
- 1000 V
- rated voltage ul use group b:
- 600 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 1 x 1.4 mm
- solder pin length:
- 4.5 mm
- solid conductor:
- 0.2 6 mm / 24 10 AWG
- strip length:
- 11 12 mm / 0.43 0.47 inch
- weight:
- 27.786 g
- width:
- 54.1 mm / 2.13 inch
