Wago

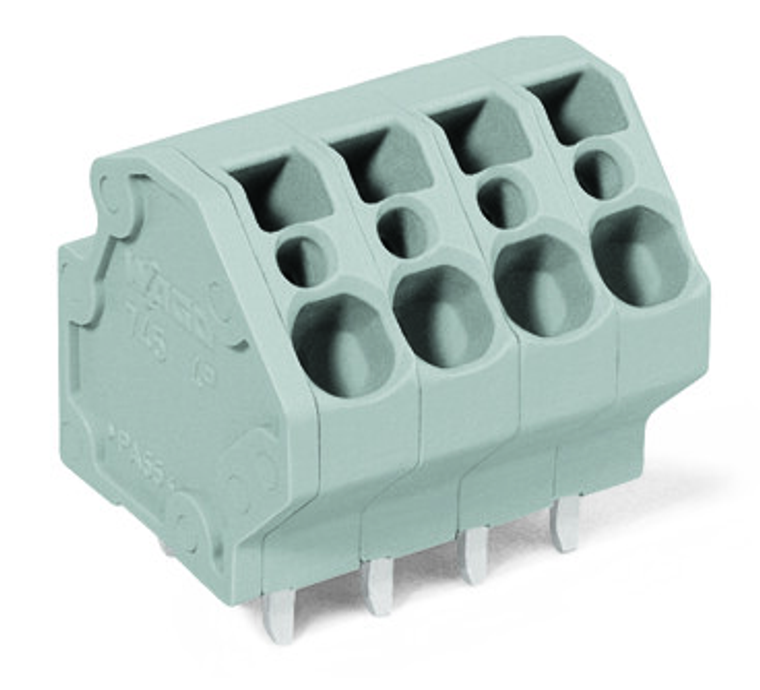

WAGO 745-3105

SKU:

745-3105

UPC:

MPN:

745-3105

Condition:

New

actuation type:

Operating tool

approvals per:

CSA

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Gray

conductor connection direction to pcb:

45

connection technology:

CAGE CLAMP

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

PL

depth:

19.4 mm / 0.764 inch

drilled hole diameter with tolerance:

1.5 (+0.1) mm

fine stranded conductor:

0.08 4 mm / 28 12 AWG

fine stranded conductor with insulated ferrule:

0.25 2.5 mm

fine stranded conductor with uninsulated ferrule:

0.25 2.5 mm

fire load:

0.140 MJ

flammability class per ul94:

V0

height:

23 mm / 0.906 inch

height from the surface:

19 mm / 0.748 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

material group:

I

nominal voltage ii 2:

630 V

nominal voltage iii 3:

320 V

number of solder pins per potential:

2

packaging type:

Box

pcb contact:

THT

pin spacing:

5 mm / 0.197 inch

pole no:

5

rated current:

32 A

rated current csa use group b:

20 A

rated current csa use group d:

0.416666666666667

rated current ul use group b:

20 A

rated current ul use group d:

0.416666666666667

rated surge voltage ii 2:

4 kV

rated surge voltage iii 2:

4 kV

rated surge voltage iii 3:

4 kV

rated voltage csa use group b:

300 V

rated voltage csa use group d:

300 V

rated voltage iii 2:

320 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

solder pin arrangement:

Over the entire terminal strip (in-line)

solder pin dimensions:

0.8 x 1.2 mm

solder pin length:

4 mm

solid conductor:

0.08 4 mm / 28 12 AWG

strip length:

8 9 mm / 0.31 0.35 inch

weight:

9.166 g

width:

26.5 mm / 1.043 inch
