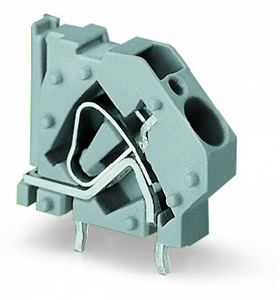

WAGO 745-837/999-950 Stackable PCB Terminal Block, 6 mm², 1-Pole, 7.5 mm Pin Spacing, Green-Yellow, Pack of 50
Wago
$98.00
Stackable PCB terminal block; 6 mm; Pin spacing 7.5 mm; 1-pole; suitable for Ex-e applications; CAGE CLAMP; commoning option; 6,00 mm; green-yellow.
The WAGO component equivalent to 745837999950 is a specific part or module used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring seamless integration and functionality within various applications. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the industry.
- actuation type:
- Operating tool
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Green-yellow
- conductor connection direction to pcb:
- 45
- connection technology:
- CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- PL
- depth:
- 29.1 mm / 1.146 inch
- drilled hole diameter with tolerance:
- 1.5 (+0.1) mm
- fine stranded conductor:
- 0.2 4 mm / 24 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 4 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 2.5 mm
- fire load:
- 0.071 MJ
- flammability class per ul94:
- V0
- height:
- 27.5 mm / 1.083 inch
- height from the surface:
- 23 mm / 0.906 inch
- insulation material:
- Polyamide (PA66)
- limit temperature range:
- -60 +105 C
- material group:
- I
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 7.5 mm / 0.295 inch
- pole no:
- 1
- rated current ex e ii:
- 37 A
- rated current ex e ii with jumper:
- 31 A
- rated voltage en ex e ii:
- 275 V
- ratings per:
- ATEX: PTB 06 ATEX 1061 U / IECEx: PTB 06.0042 U
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 1 x 1.4 mm
- solder pin length:
- 4.5 mm
- solid conductor:
- 0.2 6 mm / 24 10 AWG
- strip length:
- 11 12 mm / 0.43 0.47 inch
- weight:
- 4.742 g
- width:
- 9 mm / 0.354 inch
