16-channel digital input; 24 VDC; 3 ms; Low-side switching
Technical Data
- Number of digital inputs: 16
- Total number of channels (module): 16
- Type of signal: Voltage
- Type of signal voltage: DC 24 V
- Sensor connection: 16 x (1-conductor)
- Input characteristic: low-side switching
- Input filter (digital): 3 ms
- Input current per channel for signal (0) min.: -2.1 mA
- Input current per channel for signal (0) max.: -2.4 mA
- Input current per channel for signal (1) typ.: -0.6 mA
- Voltage range for signal (0): DC (U<sub>V</sub> - 5 V) U<sub>V</sub>
- Voltage range for signal (1): VDC (U<sub>V</sub> - 15 V)
- Max input data width (internal): 16 bit
- System supply voltage: DC 5 V; via data contacts
- Current consumption, system supply (5 V): 25 mA
- Field supply voltage: DC 24 V (-25 +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
- Isolation: 500 V system/supply
- Indicators: LED (1-16) green: Status DI 1 DI 16
- Number of incoming power jumper contacts: 2
- Number of outgoing power jumper contacts: 2
- Current carrying capacity of the power jumper contacts: 10 A
Connection Data
- Connection technology: In-/Outputs: 16 x Push-in CAGE CLAMP<sup></sup>
- Connection type (1): Inputs/Outputs
- Solid conductor: 0.08 1.5 mm / 28 16 AWG
- Fine-stranded conductor: 0.25 1.5 mm / 22 16 AWG
- Strip length: 8 9 mm / 0.31 0.35 inch
- Conductor type (1): fine-stranded
- Conductor type (2): solid
Geometrical Data
- Width: 12 mm / 0.472 inch
- Height: 69 mm / 2.717 inch
- Height from upper-edge of DIN-35 rail: 61.8 mm / 2.433 inch
- Depth: 100 mm / 3.937 inch
Mechanical Data
- Type of mounting: DIN-35 rail
Material Data
- Color: light gray
- Housing material: Polycarbonate, polyamide 6.6
- Fire load: 0.990 MJ
- Weight: 47.000 g
- Conformity marking: CE
Environmental Requirements
- Surrounding air (operating) temperature: 0 55 C
- Surrounding air (storage) temperature: -40 85 C
- Protection class: IP20
- Degree of pollution (5): 2 per IEC 61131-2
- Operating altitude: 0 2000 m
- Mounting position: horizontal (standing/lying) or vertical
- Relative air humidity (no condensation): 95 %
- Vibration resistance: 4g per IEC 60068-2-6
- Shock resistance: 15g per IEC 60068-2-27
- EMC immunity to interference: acc. to EN 61000-6-2, marine applications
- EMC emission of interference: acc. to EN 61000-6-3, marine applications
- Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
- Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 %: 10 ppm
- Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 %: 25 ppm
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454905583
- Customs Tariff No.: 85389099990

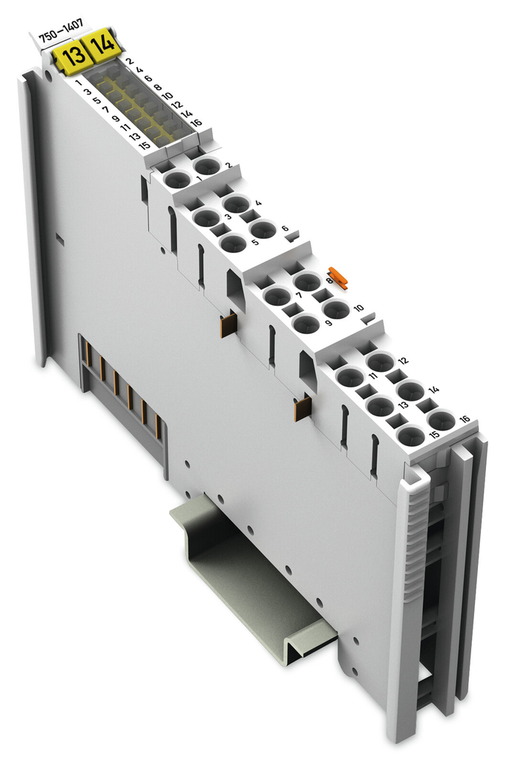

The WAGO 750 series standard DC digital input slice module features 16 digital inputs (24Vdc transistor, low-side switching, 1-wire, 3ms filter) and operates with a supply voltage of 5Vdc provided by the system. It includes Push-in spring CAGE CLAMP connections and is designed for DIN-35 rail mounting with a width of 12mm. The module is rated for an ambient temperature range of 0°C to +55°C and has an IP20 protection rating. It is equivalent to the model 7501407.
- color:
- Orange
- country of origin sales organisation germany:
- DE
- depth:
- 52.1 mm / 2.051 inch
- fire load:
- 0.108 MJ
- flammability class per ul94:
- V0
- height:
- 105.1 mm / 4.138 inch
- packaging type:
- Box
- weight:
- 3.600 g
- width:
- 0.8 mm / 0.031 inch
