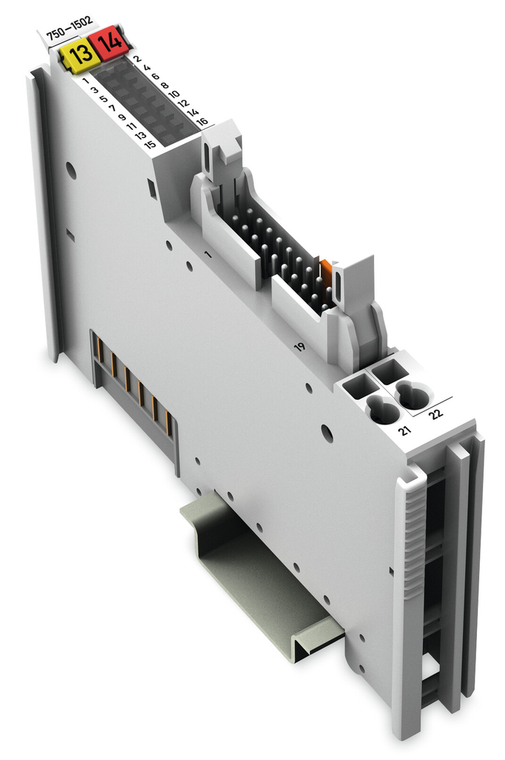

WAGO 750-1502

SKU:

750-1502

UPC:

MPN:

750-1502

Condition:

New

actuator connection:

8 x (1-wire)

color:

Light gray

conformity marking:

CE

connection technology field supply:

2 x CAGE CLAMP

connection technology inputs outputs:

20 x Male connector: 20-pole

connection type 1:

Inputs/outputs

connection type 2:

Field supply

country of origin sales organisation germany:

DE

depth:

74.1 mm / 2.917 inch

depth from upper edge of din rail:

66.9 mm / 2.634 inch

emc emission of interference:

Per EN 61000-6-3, marine applications

emc immunity to interference:

Per EN 61000-6-2, marine applications

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor 2:

0.08 2.5 mm / 28 14 AWG

fire load:

0.752 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

indicators:

LED (1-8) green: Status DI 1 DI 8: LED (9-16) green: Status DO 1 DO 8

input characteristic:

High-side switching

input current per channel for signal 1 max:

2.5 mA

input current per channel for signal 1 min:

2.2 mA

input current per channel for signal 1 typ:

2.4 mA

input data width internal max:

8 bits

input filter digital:

3 ms

isolation:

500 V system/field

load type:

Resistive, inductive, lamp load

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

number of digital inputs:

8

number of digital outputs:

8

operating altitude:

0 2000 m

output characteristic:

High-side switching

output current:

Short-circuit-protected

output current per channel:

0.5 A

output internal data width max:

8 bits

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

power consumption 5 v system supply:

30 mA

power consumption field supply module with no external load:

16 mA

protection type:

IP20

relative humidity without condensation:

0.95

sensor connection:

8 x (1-wire)

shock resistance:

15g per IEC 60068-2-27

signal type:

Voltage

solid conductor 2:

0.08 2.5 mm / 28 14 AWG

strip length 2:

8 9 mm / 0.31 0.35 inch

supply voltage field:

24 VDC (-25 +30 %): via pluggable connector (CAGE CLAMP connection)

supply voltage sensor:

24 VDC

supply voltage system:

5 VDC: via data contacts

surrounding air temperature operation:

0 55 C

surrounding air temperature storage:

-40 85 C

switching frequency max:

1 kHz

total number of channels module:

16

vibration resistance:

4g per IEC 60068-2-6

voltage range for signal 0:

3 +5 VDC

voltage range for signal 1:

15 30 VDC

voltage signal type:

24 VDC

weight:

58.000 g

width:

12 mm / 0.472 inch

wiring interface:

Fixed
