Wago

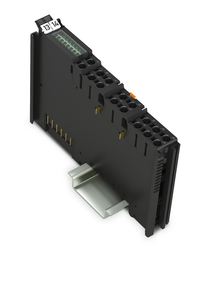

WAGO 750-1605

SKU:

750-1605

UPC:

MPN:

750-1605

Condition:

New

conformity marking:

CE

connection technology field supply:

16 x CAGE CLAMP

connection type 1:

Field supply

country of origin sales organisation germany:

DE

current carrying capacity power jumper contacts:

0.416666666666667

depth:

69 mm / 2.717 inch

depth from upper edge of din rail:

61.8 mm / 2.433 inch

emc emission of interference:

Per EN 61000-6-3, marine applications

emc immunity to interference:

Per EN 61000-6-2, marine applications

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.25 1.5 mm / 22 16 AWG

fire load:

0.923 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

number of incoming power jumper contacts:

2

number of outgoing power jumper contacts:

2

operating altitude:

0 2000 m

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

protection type:

IP20

relative humidity without condensation:

0.95

shock resistance:

15g per IEC 60068-2-27

signal type:

Voltage

solid conductor:

0.08 1.5 mm / 28 16 AWG

strip length:

8 9 mm / 0.31 0.35 inch

supply voltage field:

24 VDC (-25 +30 %): via power jumper contacts (power supply via blade contact: transmission via spring contact)

supply voltage system:

5 VDC: via data contacts

surrounding air temperature operation:

0 55 C

surrounding air temperature storage:

-40 85 C

vibration resistance:

4g per IEC 60068-2-6

voltage signal type:

24 VDC

weight:

48.000 g

width:

12 mm / 0.472 inch
