Wago

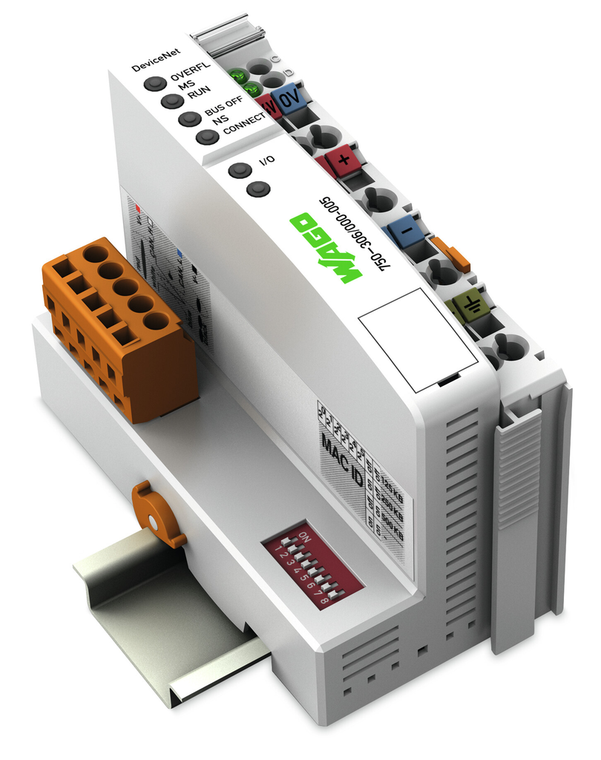

WAGO 750-306/000-005

SKU:

750-306/000-005

UPC:

MPN:

750-306/000-005

Condition:

New

baud rate:

500 kBd (125 kbaud, 250 kbaud, 500 kbaud)

bus segment length max:

500 m

color:

Light gray

communication:

DeviceNet

conformity marking:

CE

connection technology communication fieldbus:

DeviceNet: 1 x Male connector: 5-pole

connection technology device configuration:

1 x Male connector: 4-pole

connection technology field supply:

6 x CAGE CLAMP

connection technology system supply:

2 x CAGE CLAMP

connection type 1:

System/field supply

country of origin sales organisation germany:

DE

current carrying capacity power jumper contacts:

0.416666666666667

depth:

71.1 mm / 2.799 inch

depth from upper edge of din rail:

63.9 mm / 2.516 inch

devicenet features:

Polled I/O Message Connection || Strobed I/O Message Connection || Change of State || Cyclic Message Connection || Group 2 only Slave

emc emission of interference:

Per EN 61000-6-4, marine applications

emc immunity to interference:

Per EN 61000-6-2, marine applications

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

3.092 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

input and output fieldbus process image max:

512 Byte/512 Byte

input current typ at nominal load 24 v:

500 mA

input current via devicenet interface at 11 v:

120 mA

isolation:

500 V system/field

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

note:

Note: Configuration files required (EDS)!

number of fieldbus nodes on master max:

64

number of i o points:

6000

number of modules per node max:

64

number of outgoing power jumper contacts:

3

operating altitude:

0 2000 m

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

power consumption 5 v system supply:

350 mA

power supply efficiency typ at nominal load 24 v:

0.87

protection type:

IP20

relative humidity without condensation:

0.95

shock resistance:

15g per IEC 60068-2-27

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

supply voltage field:

24 VDC (-25 +30 %): via power jumper contacts

supply voltage system:

24 VDC (-25 +30 %): via pluggable connector (CAGE CLAMP connection)

surrounding air temperature operation:

0 55 C

surrounding air temperature storage:

-40 85 C

total current system supply:

1650 mA

transmission medium:

Shielded Cu cable: Remote bus cable: 2 x 0.82 mm + 2 x 1.7 mm: Drop cable: 2 x 0.2 mm + 2 x 0.32 mm

vibration resistance:

Per IEC 60068-2-6

weight:

202.000 g

width:

50.5 mm / 1.988 inch
