Fieldbus Coupler CC-Link
Technical Data
- Communication: CC-Link
- Number of fieldbus nodes on the master max.: 64
- Baud rate: 156 kBd 10 MBd
- Fieldbus segment length max.: 1200 m
- Transmission medium: Shielded Cu cable 2 / 3 x 0.5 mm
- Station addresses: up to 4
- Number of modules per node max.: 64
- Input process image (internal): 14-byte digital, 2-byte system, 32-byte analog
- Output process image (internal): 14-byte digital, 2-byte system, 32-byte analog
- System supply voltage: DC 24 V(-25 +30 %); via wiring level (CAGE CLAMP<sup></sup> connection)
- Current consumption, system supply (5 V): 300 mA
- Total current for system supply: 1700 mA
- Field supply voltage: DC 24 V (-25 +30 %); via power jumper contacts
- Input current typ. at rated load (24 V): 500 mA
- Efficiency of the power supply (typ.) at nominal load (24 V): 87 %
- Isolation: 500 V system/supply
- Number of outgoing power jumper contacts: 3
- Current carrying capacity of the power jumper contacts: 10 A
Connection Data
- Connection technology: communication/fieldbus: CC-Link: 1 x D-Sub 9 socket
- Connection technology: field supply: 6 x CAGE CLAMP<sup></sup>
- Connection technology: system supply: 2 x CAGE CLAMP<sup></sup>
- Connection technology: Device configuration: 1 x 4-pole male connector
- Connection type (1): System/field supply
- Solid conductor: 0.08 2.5 mm / 28 14 AWG
- Fine-stranded conductor: 0.08 2.5 mm / 28 14 AWG
- Strip length: 8 9 mm / 0.31 0.35 inch
Geometrical Data
- Width: 50.5 mm / 1.988 inch
- Height: 71.1 mm / 2.799 inch
- Height from upper-edge of DIN-35 rail: 63.9 mm / 2.516 inch
- Depth: 100 mm / 3.937 inch
Mechanical Data
- Type of mounting: DIN-35 rail
Material Data
- Color: light gray
- Housing material: Polycarbonate, polyamide 6.6
- Fire load: 0.000 MJ
- Weight: 209.400 g
- Conformity marking: CE
Environmental Requirements
- Surrounding air (operating) temperature: 0 55 C
- Surrounding air (storage) temperature: -40 85 C
- Protection class: IP20
- Degree of pollution (5): 2 per IEC 61131-2
- Operating altitude: 0 2000 m
- Mounting position: horizontal (standing/lying) or vertical
- Relative air humidity (no condensation): 95 %
- Vibration resistance: acc. to IEC 60068-2-6
- Shock resistance: 15g per IEC 60068-2-27
- EMC immunity to interference: acc. to EN 61000-6-2
- EMC emission of interference: acc. to EN 61000-6-4
- Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
- Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 %: 10 ppm
- Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 %: 25 ppm
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454526771
- Customs Tariff No.: 85176200000

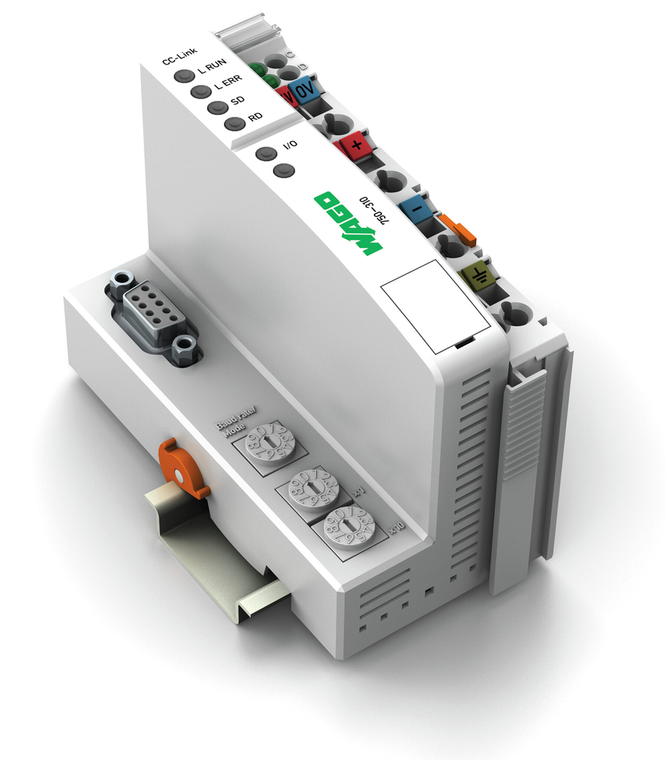

The WAGO 750 series Fieldbus coupler/head (remote I/O controller unit) features CC-Link communication capability, supporting up to 64 connections per node and 64 fieldbus nodes on the master connection. It operates on a 24Vdc supply via system wiring and power jumper, and includes a 9-pin D-sub female connector for fieldbus, a spring CAGE CLAMP for power supply connections, and a 4-pin male connector for device configuration. Designed for DIN-35 rail mounting with a width of 50.5mm, it is rated for IP20 protection and suitable for ambient temperatures ranging from 0°C to +55°C, equivalent to model 750310.
- actuation type:
- Push-in || Operating tool
- approvals per:
- UL 1059
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP«
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 69.5 mm / 2.736 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.25 ª 4 mm / 22 ª 12 AWG
- fine stranded conductor with ferrule push in termination:
- 1 ª 2.5 mm / 18 ª 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 ª 2.5 mm / 22 ª 14 AWG
- fire load:
- 0.321 MJ
- flammability class per ul94:
- V0
- height:
- 93.3 mm / 3.673 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) « Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 2.5 mm
- nominal voltage iii 3:
- 500 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- rated current:
- 24 A
- rated current 2:
- 28 A
- rated current csa use group b:
- 20 A
- rated current csa use group c:
- 20 A
- rated current ex e ii:
- 19 A
- rated current ex e ii with jumper:
- 17 A
- rated current ul use group b:
- 20 A
- rated current ul use group c:
- 20 A
- rated current ul use group d:
- 0.208333333333333
- rated surge voltage iii 3:
- 6 kV
- rated voltage csa use group b:
- 600 V
- rated voltage csa use group c:
- 600 V
- rated voltage en ex e ii:
- 440 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group c:
- 300 V
- rated voltage ul use group d:
- 600 V
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.25 ª 4 mm / 22 ª 12 AWG
- solid conductor push in termination:
- 0.75 ª 4 mm / 18 ª 12 AWG
- strip length:
- 10 ª 12 mm / 0.39 ª 0.47 inch
- weight:
- 17.745 g
- width:
- 5.2 mm / 0.205 inch
- wiring direction:
- Front-entry wiring
