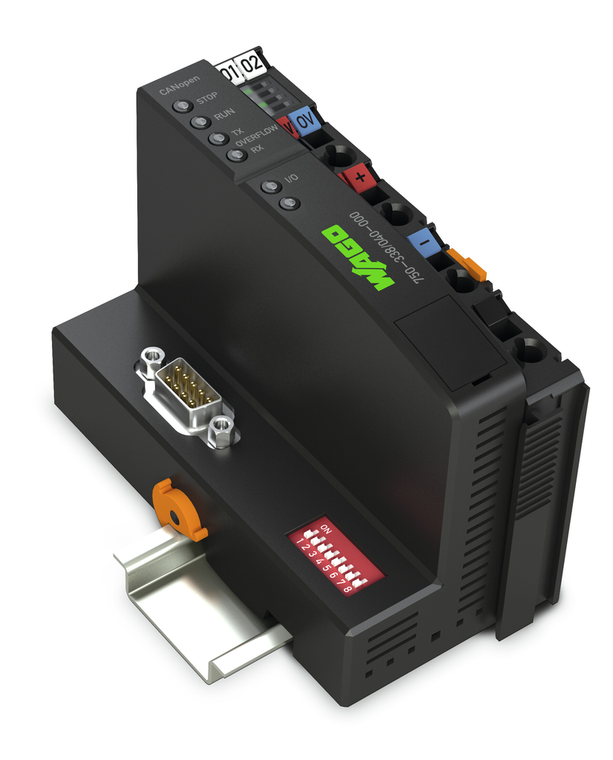

WAGO 750-338/040-000

SKU:

750-338/040-000

UPC:

MPN:

750-338/040-000

Condition:

New

baud rate:

10 kBd 1 MBd

bus segment length max:

1000 m

cob id distribution:

SDO, standard

color:

Dark gray

communication:

CANopen

communication profile:

DS-301 V4.1

conformity marking:

CE

connection technology communication fieldbus:

CANopen: 1 x D-sub 9 plug

connection technology device configuration:

1 x Male connector: 4-pole

connection technology field supply:

4 x CAGE CLAMP

connection technology system supply:

2 x CAGE CLAMP

connection type 1:

System/field supply

country of origin sales organisation germany:

DE

current carrying capacity power jumper contacts:

0.416666666666667

depth:

71.1 mm / 2.799 inch

depth from upper edge of din rail:

63.9 mm / 2.516 inch

derating:

Derating (supply voltage): Surrounding air temperatures under laboratory conditions: (-25 +30 %): for -40 +55 C: 24 V (-25 +20 %): for +55 +70 C: 24 V (-25 +10 %): Lower limit in all temperature ranges: 27.5 % (

device profile:

DS-401 V2.0 || Limit value monitoring || Edge-triggered PDOs || Configurable response in the event of an error

emc emission of interference:

Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5

emc immunity to interference:

Per EN 61000-6-1, -2, EN 61131-2, marine applications, EN 50121-3-2, -4, -5, EN 60255-26

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.25 2.5 mm / 24 14 AWG

fire load:

0.469 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

input and output fieldbus process image max:

512 Byte/512 Byte

input current typ at nominal load 24 v:

500 mA

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

node id distribution:

DIP switch

note:

Note: Configuration files required (EDS)!

number of fieldbus nodes on master max:

110

number of modules per node max:

64

number of outgoing power jumper contacts:

2

number of pdos:

32 Tx / 32 Rx

number of sdos:

2 SDO servers

operating altitude:

Without temperature derating: 0 2000 m: with temperature derating: 2000 5000 m (0.5 K/100 m): 5000 m (max.)

other canopen features:

NMT slave || Minimum boot-up || Variable PDO mapping || Emergency message || Life guarding || Empty module configuration

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

power consumption 5 v system supply:

350 mA

power supply efficiency typ at nominal load 24 v:

0.9

protection type:

IP20

rated surge voltage:

1 kV

ratings per:

IEC/EN 60664-1

relative humidity with condensation:

Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)

relative humidity without condensation:

0.95

shock resistance:

Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks: 25g/6 ms/1,000 shocks), EN 50155, EN 61373

solid conductor:

0.25 2.5 mm / 24 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

supply voltage field:

24 VDC: Power supply via pluggable connector (CAGE CLAMP connection): Transmission via power jumper contacts: Derating must be observed!

supply voltage system:

24 VDC: via pluggable connector (CAGE CLAMP connection): Derating must be observed!

surrounding air temperature operation:

-40 70 C

surrounding air temperature storage:

-40 85 C

total current system supply:

1650 mA

transmission medium:

Shielded Cu cable 3 x 0.25 mm

vibration resistance:

Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155: EN 61373

weight:

176.500 g

width:

50.5 mm / 1.988 inch
