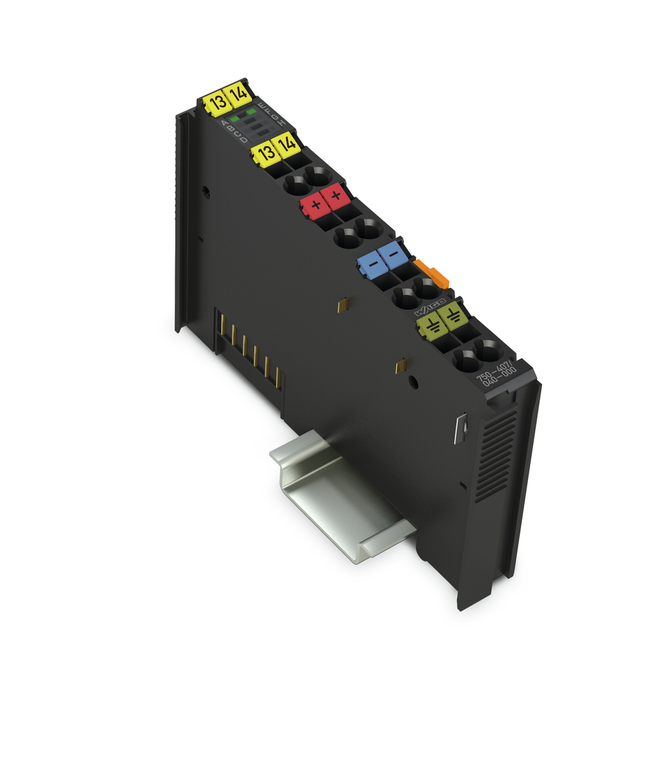

Current via power jumper contacts (max.): 10 mA (surrounding air (operating) temperature < 60 C): 8 A (surrounding air (operating) temperature: 60 70 C)
dielectric strength:
2.5 kV (AC)/3.5 kV (DC): per EN 60870-2-1
emc emission of interference:
Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5
emc immunity to interference:
Per EN 61000-6-1, -2: EN 61131-2: marine applications: EN 50121-3-2: EN 50121-4, -5: EN 60255-26: EN 60870-2-1: EN 61850-3: IEC 61000-6-5: IEEE 1613: VDEW: 1994
exposure to pollutants:
Per IEC 60068-2-42 and IEC 60068-2-43
fine stranded conductor:
0.25 2.5 mm / 24 14 AWG
fire load:
0.147 MJ
height:
100 mm / 3.937 inch
housing material:
Polycarbonate: polyamide 6.6
indicators:
LED (A, E) green: Status DI 1, DI 2
input characteristic:
High-side switching
input current per channel for signal 1 typ:
1.2 mA
input data width internal max:
2 bits
input filter digital:
3 ms
mounting position:
Horizontal (standing/lying): vertical
mounting type:
DIN-35 rail
number of digital inputs:
2
number of incoming power jumper contacts:
3
number of outgoing power jumper contacts:
3
operating altitude:
Without temperature derating: 0 2000 m: with temperature derating: 2000 5000 m (0.5 K/100 m): 5000 m (max.)
overvoltage category:
Nominal voltage 220 V: IV (EN 60664-1 / up to 5,000 m above sea level)
packaging type:
Box
permissible h2s contaminant concentration at a relative humidity 75:
10 ppm
permissible so2 contaminant concentration at a relative humidity 75:
25 ppm
pollution degree 5:
2 per EN 60664-1
power consumption 5 v system supply:
5 mA
protection type:
IP20
rated surge voltage:
5.0 kV (EN 60870-2-1 / Class VW3): 4.0 kV (UL 508): 4.0 kV (EN 60664-1 / to 4,000 m ASL): 2.5 kV (EN 60664-1 / > 4,000 m to 5,000 m ASL)
relative humidity with condensation:
Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
relative humidity without condensation:
0.95
sensor connection:
2 x (2-wire, 3-wire, 4-wire)
shock resistance:
Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks: 25g/6 ms/1,000 shocks), EN 50155, EN 61373
signal type:
Voltage
solid conductor:
0.25 2.5 mm / 24 14 AWG
strip length:
8 9 mm / 0.31 0.35 inch
supply voltage field:
220 VDC (-20 +25 %): via power jumper contacts (power supply via blade contact: transmission via spring contact)
supply voltage sensor:
220 VDC
supply voltage system:
5 VDC: via data contacts
surrounding air temperature operation:
-40 70 C
surrounding air temperature storage:
-40 85 C
total number of channels module:
2
vibration resistance:
Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155: EN 61373
