Description
4-channel digital input; 24 VDC; Pulse extension
View AllClose
Technical Data
- Number of digital inputs: 4
- Total number of channels (module): 4
- Type of signal: Voltage
- Type of signal voltage: DC 24 V
- Sensor supply voltage: DC 24 V
- Sensor connection: 2 x (2-conductor, 3-conductor); To connect other sensors, a suitable field side connection module (e.g., 750-614) must also be used.
- Input characteristic: high-side switching
- Input filter (digital): 1 ms
- Input current per channel for signal (1) typ.: 4 mA
- Voltage range for signal (0): +5 VDC
- Voltage range for signal (1): 15 30 VDC
- Signal frequency max.: 80 Hz
- Max input data width (internal): 4 bit
- System supply voltage: DC 5 V; via data contacts
- Current consumption, system supply (5 V): 9 mA
- Field supply voltage: DC 24 V (-15 +20 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
- Isolation: 500 V system/supply
- Indicators: LED (A-D) green: Status DI 1 DI 4
- Number of incoming power jumper contacts: 2
- Number of outgoing power jumper contacts: 2
- Current carrying capacity of the power jumper contacts: 10 A
Connection Data
- Connection technology: In-/Outputs: 8 x CAGE CLAMP<sup></sup>
- Connection type (1): Inputs/Outputs
- Solid conductor: 0.08 2.5 mm / 28 14 AWG
- Fine-stranded conductor: 0.08 2.5 mm / 28 14 AWG
- Strip length: 8 9 mm / 0.31 0.35 inch
Geometrical Data
- Width: 12 mm / 0.472 inch
- Height: 69.8 mm / 2.748 inch
- Height from upper-edge of DIN-35 rail: 62.6 mm / 2.465 inch
- Depth: 100 mm / 3.937 inch
Mechanical Data
- Type of mounting: DIN-35 rail
Material Data
- Color: light gray
- Housing material: Polycarbonate, polyamide 6.6
- Fire load: 0.000 MJ
- Weight: 46.628 g
- Conformity marking: CE
Environmental Requirements
- Surrounding air (operating) temperature: 0 55 C
- Surrounding air (storage) temperature: -40 85 C
- Protection class: IP20
- Degree of pollution (5): 2 per IEC 61131-2
- Operating altitude: 0 2000 m
- Mounting position: horizontal (standing/lying) or vertical
- Relative air humidity (no condensation): 95 %
- Vibration resistance: acc. to IEC 60068-2-6
- Shock resistance: 15g per IEC 60068-2-27
- EMC immunity to interference: acc. to EN 61000-6-2
- EMC emission of interference: acc. to EN 61000-6-4
- Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
- Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 %: 10 ppm
- Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 %: 25 ppm
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454616632
- Customs Tariff No.: 85389099990

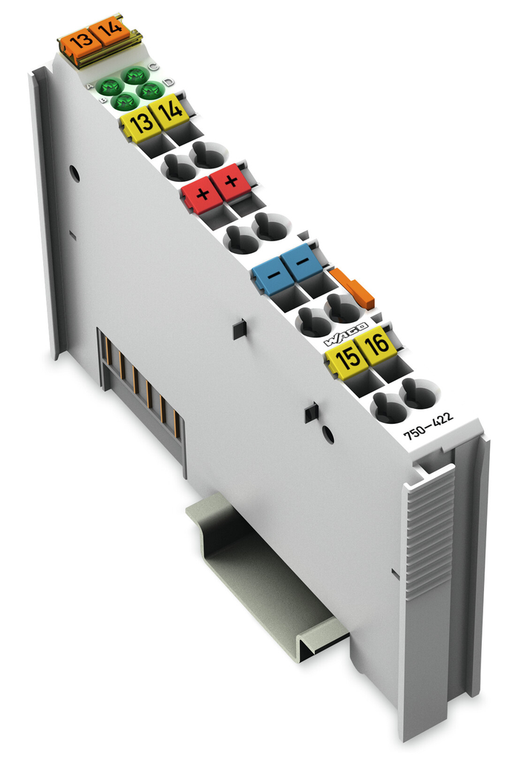

The WAGO 750 series standard DC digital input slice module with pulse extension features 4 digital inputs (24Vdc transistor, high-side switching, 2-wire/3-wire, 1ms filter) and operates with a supply voltage of 5Vdc provided by the system. It includes spring CAGE CLAMP connections, is designed for DIN-35 rail mounting with a 12mm width, and has an IP20 protection rating. The module is suitable for ambient temperatures ranging from 0°C to +55°C and is equivalent to model 750422.
