Wago

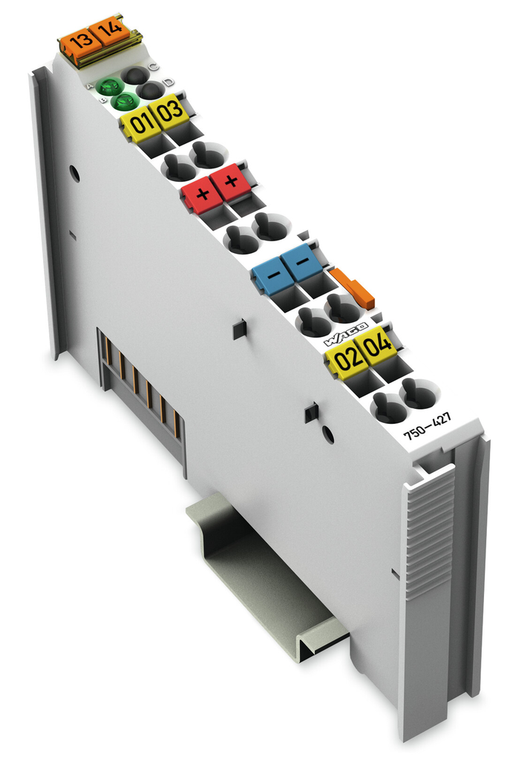

WAGO 750-427

SKU:

750-427

UPC:

MPN:

750-427

Condition:

New

color:

Light gray

conformity marking:

CE

connection technology inputs outputs:

8 x CAGE CLAMP

connection type 1:

Inputs/outputs

country of origin sales organisation germany:

DE

current carrying capacity power jumper contacts:

0.416666666666667

depth:

69.8 mm / 2.748 inch

depth from upper edge of din rail:

62.6 mm / 2.465 inch

emc emission of interference:

Per EN 61000-6-3

emc immunity to interference:

Per EN 61000-6-2

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

0.934 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

indicators:

LED (A, B) green: Status DI 1, DI 2

input characteristic:

High-side/low-side switching, configurable

input current per channel for signal 1 typ:

2.5 mA

input data width internal max:

2 bits

input filter digital:

3 ms

isolation:

1500 V (system/field)

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

number of digital inputs:

2

number of incoming power jumper contacts:

2

number of outgoing power jumper contacts:

2

operating altitude:

0 2000 m

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

power consumption 5 v system supply:

2.5 mA

protection type:

IP20

relative humidity without condensation:

0.95

sensor connection:

2 x (2-wire)

shock resistance:

15g per IEC 60068-2-27

signal type:

Voltage

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

supply voltage field:

110 VDC (-20 +25 %): via power jumper contacts (power supply via blade contact: transmission via spring contact)

supply voltage sensor:

110 VDC

supply voltage system:

5 VDC: via data contacts

surrounding air temperature operation:

0 55 C

surrounding air temperature storage:

-40 85 C

total number of channels module:

2

vibration resistance:

Per IEC 60068-2-6

voltage range for signal 0:

14 +50 VDC

voltage range for signal 1:

70 143 VDC

voltage signal type:

110 VDC

weight:

47.414 g

width:

12 mm / 0.472 inch

wiring interface:

Fixed
