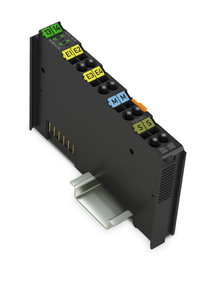

WAGO 750-468 4-Channel Analog Input Module, 0-10 VDC, Single-Ended
Wago
$580.80
4-channel analog input; 0 ... 10 VDC; Single-ended.
The WAGO 750 series standard analog input slice module (750-468) features four single-ended analog inputs (0-10Vdc) with 12-bit resolution and a 4ms conversion time, designed for 2-wire connections. It operates on a 5Vdc supply voltage provided by the system and utilizes spring CAGE CLAMP connections for secure wiring. The module is mounted on a DIN-35 rail with a compact 12mm width and is rated for an ambient temperature range of 0°C to +55°C, with an IP20 protection rating.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CH
- depth:
- 32 mm / 1.26 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.076 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 22.1 mm / 0.87 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- Mounting flange
- nominal voltage iii 3:
- 800 V
- note conductor cross section:
- 12 AWG: THHN, THWN
- packaging type:
- Box
- rated current:
- 24 A
- rated surge voltage iii 3:
- 8 kV
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 3.907 g
- width:
- 6 mm / 0.236 inch
- wiring direction:
- Front-entry wiring
