Description
2-channel analog input; 4
20 mA; Single-ended.
View AllClose

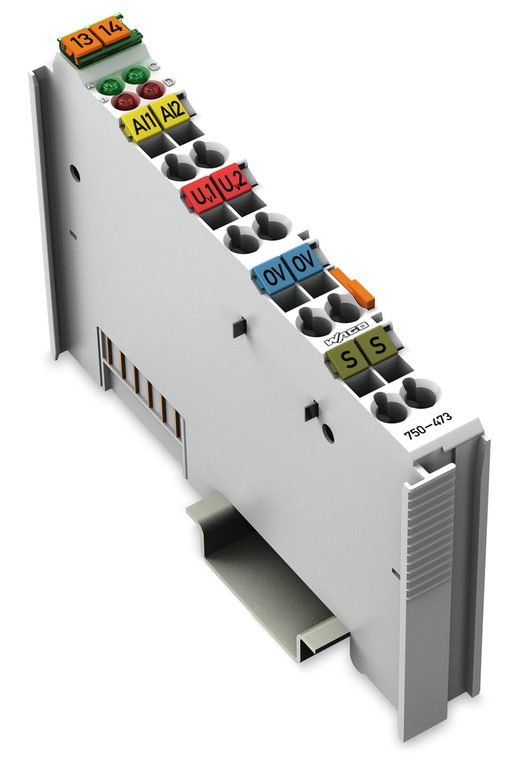

The WAGO 750 series standard analog input slice module (750-473) features 2 analog inputs (4-20mA, single-ended, 12-bit resolution with 80ms conversion time) and supports both 2-wire and 3-wire connections. It operates on a 5V DC supply voltage provided by the system and includes spring CAGE CLAMP connections for secure wiring. Designed for DIN-35 rail mounting with a 12mm width, it is rated for ambient temperatures ranging from 0°C to +55°C and has an IP20 protection rating.
