2-channel analog input; 4
20 mA HART; Intrinsically safe.

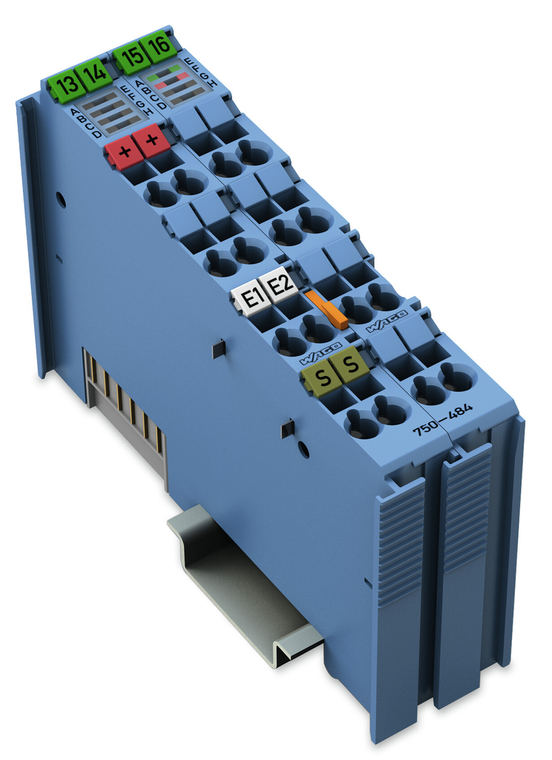

The WAGO 750 series intrinsically-safe analog input slice module (750484) features 2 analog inputs (4-20mA, single-ended, 12-bit resolution with 10ms conversion time) and HART communication capability. It operates on a 5V DC supply voltage provided by the system and includes spring CAGE CLAMP connections for secure wiring. Designed for DIN-35 rail mounting with a 24mm width, it is rated for ambient temperatures between 0°C and +55°C and has an IP20 protection rating.
- color:
- Blue
- conformity marking:
- CE
- connection technology inputs outputs:
- 16 x CAGE CLAMP
- connection type 1:
- Inputs/outputs
- conversion time typ:
- 10 ms
- country of origin sales organisation germany:
- DE
- current carrying capacity power jumper contacts:
- 0.0416666666666667
- data width:
- 2 x 2-byte data: 2 x 2-byte data + 2n x 4-byte data (n = number of dynamic variables): 2 x 2-byte data + 6-byte mailbox
- depth:
- 67.8 mm / 2.669 inch
- depth from upper edge of din rail:
- 60.6 mm / 2.386 inch
- diagnostics:
- Wire break, measurement range overflow
- emc emission of interference:
- Per EN 61000-6-3, marine applications
- emc immunity to interference:
- Per EN 61000-6-2, marine applications
- ex guideline:
- EN IEC 60079-0, -7, -11
- exposure to pollutants:
- Per IEC 60068-2-42 and IEC 60068-2-43
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fire load:
- 1.682 MJ
- hart modems per channel:
- One modem (no multiplex)
- height:
- 100 mm / 3.937 inch
- housing material:
- Polycarbonate: polyamide 6.6
- input filter:
- Parameterizable
- input filter parametrizable channel by channel:
- Yes
- intrinsic safety ex i:
- Yes
- isolation:
- 300 VAC system/field
- marking:
- ATEX, IECEx, INMETRO, Underwriters Laboratories Inc.
- measurement error deviation max from the upper range value:
- 0.002
- measurement error reference temperature:
- 25 C
- mounting position:
- Horizontal (standing/lying): vertical
- mounting type:
- DIN-35 rail
- note:
- The analog output module must only be operated via 24 VDC Ex i!General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 manuals!
- number of analog inputs:
- 2
- number of incoming power jumper contacts:
- 2
- number of outgoing power jumper contacts:
- 2
- operating altitude:
- 0 2000 m
- overvoltage protection:
- 30 V, reverse polarity protected
- packaging type:
- Box
- permissible h2s contaminant concentration at a relative humidity 75:
- 10 ppm
- permissible so2 contaminant concentration at a relative humidity 75:
- 25 ppm
- pollution degree 5:
- 2 per IEC 61131-2
- power consumption 5 v system supply:
- 25 mA
- power consumption field supply module with no external load:
- 26 mA
- power consumption pmax:
- 1.60 W (with slaves (20 mA))
- power loss pl:
- 0.62 W (without slaves)
- protection type:
- IP20
- reactances ex ia i:
- Lo = 36 mH: Co = 3.49 F
- reactances ex ia iia:
- Lo = 38 mH: Co = 2.2 F
- reactances ex ia iib:
- Lo = 15 mH: Co = 670 nF
- reactances ex ia iic:
- Lo = 1.5 mH: Co = 87 nF
- reactances note:
- Reactances without accounting for the concurrence of L and C
- relative humidity without condensation:
- 0.95
- resolution bit:
- 12 bits
- safety relevant data circuit:
- Uo = 27.3 V: Io = 92.7 mA: Po = 630 mW: Linear characteristic curve
- sensor connection:
- 2 x (2-wire)
- shock resistance:
- 15g per IEC 60068-2-27
- signal characteristic:
- Single-ended
- signal type:
- Current
- signal type current:
- 4 20 mADC
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- supply voltage field:
- 24 VDC: (Ex i power supply: UO = max. 27.3 V): via power jumper contacts (power supply via blade contact: transmission via spring contact)
- supply voltage sensor:
- 16.5 VDC: Transmitter supply UV at 20 mA
- supply voltage system:
- 5 VDC: via data contacts
- surrounding air temperature operation:
- 0 55 C
- surrounding air temperature storage:
- -40 85 C
- temperature error max of the upper range value:
- 0.01 %/K
- total number of channels module:
- 2
- vibration resistance:
- 4g per IEC 60068-2-6
- weight:
- 92.000 g
- width:
- 24 mm / 0.945 inch
