Description
8-channel digital output; 12 VDC; 1 A
View AllClose
Technical Data
- Number of digital outputs: 8
- Total number of channels (module): 8
- Type of signal: Voltage
- Type of signal voltage: DC 5 V; DC 12 V
- Actuator connection: 8 x (1-conductor)
- Output characteristic: high-side switching
- Output current per channel: 1 A
- Output current: short-circuit-protected
- Switching frequency max.: 2 kHz
- Type of load: resistive, inductive
- Inductive load switch-off energy dissipation W (max.): 0.26 J
- Max output data width (internal): 8 bit
- System supply voltage: DC 5 V; via data contacts
- Current consumption, system supply (5 V): 20 mA
- Field supply voltage: DC 14 V; via power jumper contacts (power supply via blade contact; transmission via spring contact)
- Current consumption, field supply (module with no external load): 25 mA
- Isolation: 500 V system/supply
- Indicators: LED (A-D) green: Status DO 1, DO 3, DO 5, DO 7; LED (E-H) green: Status DO 2, DO 4, DO 6, DO 8
- Number of incoming power jumper contacts: 2
- Number of outgoing power jumper contacts: 2
- Current carrying capacity of the power jumper contacts: 10 A
Connection Data
- Connection technology: In-/Outputs: 8 x CAGE CLAMP<sup></sup>
- Connection type (1): Inputs/Outputs
- Solid conductor: 0.08 2.5 mm / 28 14 AWG
- Fine-stranded conductor: 0.08 2.5 mm / 28 14 AWG
- Strip length: 8 9 mm / 0.31 0.35 inch
Geometrical Data
- Width: 12 mm / 0.472 inch
- Height: 67.8 mm / 2.669 inch
- Height from upper-edge of DIN-35 rail: 60.6 mm / 2.386 inch
- Depth: 100 mm / 3.937 inch
Mechanical Data
- Type of mounting: DIN-35 rail
Material Data
- Housing material: Polycarbonate, polyamide 6.6
- Fire load: 1.152 MJ
- Weight: 50.064 g
- Conformity marking: CE
Environmental Requirements
- Surrounding air (operating) temperature: 0 55 C
- Surrounding air (storage) temperature: -40 85 C
- Protection class: IP20
- Degree of pollution (5): 2 per IEC 61131-2
- Operating altitude: 0 2000 m
- Mounting position: horizontal (standing/lying) or vertical
- Relative air humidity (no condensation): 95 %
- Vibration resistance: 4g per IEC 60068-2-6
- Shock resistance: 15g per IEC 60068-2-27
- EMC immunity to interference: acc. to EN 61131-2, marine applications
- EMC emission of interference: acc. to EN 61131-2, marine applications
- Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
- Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 %: 10 ppm
- Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 %: 25 ppm
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454754549
- Customs Tariff No.: 85371098990

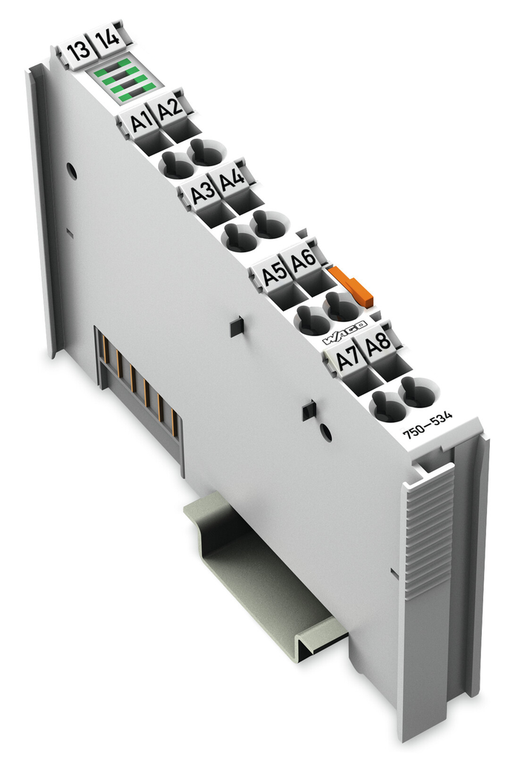

The WAGO 750 series standard DC digital output slice module features 8 digital outputs (8DO) with specifications of 12Vdc and 1A, utilizing high-side switching and 1-wire connections. It operates with a supply voltage of 5Vdc provided by the system and includes spring CAGE CLAMP connections for secure wiring. Designed for DIN-35 rail mounting with a compact 12mm width, the module is rated for an ambient temperature range of 0°C to +55°C and has an IP20 protection rating. This module is equivalent to the WAGO 750-534 model.
