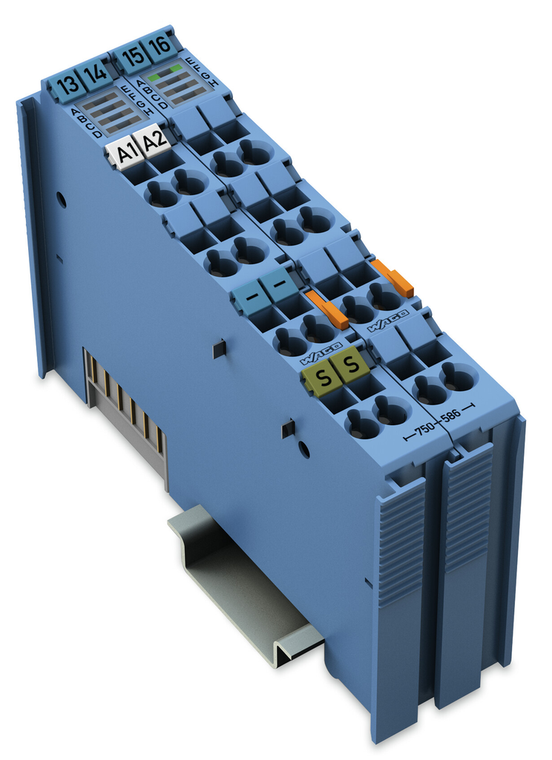

WAGO 750-586

SKU:

750-586

UPC:

MPN:

750-586

Condition:

New

actuator connection:

2 x (2-wire)

color:

Blue

conformity marking:

CE

connection technology inputs outputs:

16 x CAGE CLAMP

connection type 1:

Inputs/outputs

conversion time typ:

2 ms

country of origin sales organisation germany:

DE

data width:

2 x 16-bit data

depth:

67.8 mm / 2.669 inch

depth from upper edge of din rail:

60.6 mm / 2.386 inch

emc emission of interference:

Per EN 61000-6-3, marine applications

emc immunity to interference:

Per EN 61000-6-2, marine applications

ex guideline:

EN IEC 60079-0, -7, -11

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

1.945 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

intrinsic safety ex i:

Yes

isolation:

300 VAC system/field

linearity:

2 LSB

load impedance current output:

¤ 500

marking:

ATEX, IECEx, INMETRO, Underwriters Laboratories Inc.

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

note:

The analog output module must only be operated with a 24 VDC Ex i power supply!General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 manuals!

number of analog outputs:

2

number of incoming power jumper contacts:

2

number of outgoing power jumper contacts:

2

operating altitude:

0 2000 m

output error deviation max of the upper range value:

0.002

output error reference temperature:

25 C

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

power consumption 5 v system supply:

21 mA

power consumption field supply module with no external load:

19 mA

power consumption pmax:

1.5 W

power loss pl:

0.9 W

protection type:

IP20

reactances ex ia i:

Lo = 110 mH: Co = 3.5 F

reactances ex ia iia:

Lo = 90 mH: Co = 2.2 F

reactances ex ia iib:

Lo = 56 mH: Co = 680 nF

reactances ex ia iic:

Lo = 11 mH: Co = 88 nF

reactances note:

Reactances without accounting for the concurrence of L and C

relative humidity without condensation:

0.95

resolution bit:

12 bits

safety relevant data circuit:

Uo = 27.3 V: Io = 57.5 mA: Po = 392 mW: Linear characteristic curve

shock resistance:

15g per IEC 60068-2-27

signal characteristic:

Single-ended

signal type:

Current

signal type current:

4 20 mADC

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

supply voltage field:

24 VDC: (Ex i power supply: UO = max. 27.3 V): via power jumper contacts (power supply via blade contact: transmission via spring contact)

supply voltage system:

5 VDC: via data contacts

surrounding air temperature operation:

0 55 C

surrounding air temperature storage:

-40 85 C

temperature error max of the output range value:

0.01 %/K

total number of channels module:

2

vibration resistance:

4g per IEC 60068-2-6

weight:

94.687 g

width:

24 mm / 0.945 inch
