Distance Module.

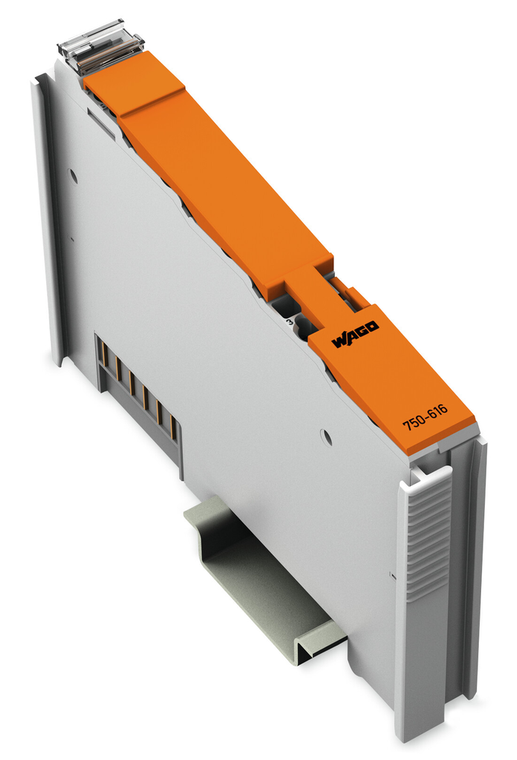

The WAGO 750 series standard distance module is a light gray module designed for DIN-35 rail mounting with a width of 12mm. It has an IP20 protection rating and is equivalent to the 750616 model.
- color:
- Light gray
- conformity marking:
- CE
- country of origin sales organisation germany:
- DE
- depth:
- 69.8 mm / 2.748 inch
- depth from upper edge of din rail:
- 62.6 mm / 2.465 inch
- emc emission of interference:
- Per EN 61000-6-4, marine applications
- emc immunity to interference:
- Per EN 61000-6-2, marine applications
- exposure to pollutants:
- Per IEC 60068-2-42 and IEC 60068-2-43
- fire load:
- 0.987 MJ
- height:
- 100 mm / 3.937 inch
- housing material:
- Polycarbonate: polyamide 6.6
- mounting position:
- Horizontal (standing/lying): vertical
- mounting type:
- DIN-35 rail
- operating altitude:
- 0 2000 m
- packaging type:
- Box
- permissible h2s contaminant concentration at a relative humidity 75:
- 10 ppm
- permissible so2 contaminant concentration at a relative humidity 75:
- 25 ppm
- pollution degree 5:
- 2 per IEC 61131-2
- protection type:
- IP20
- relative humidity without condensation:
- 0.95
- shock resistance:
- 15g per IEC 60068-2-27
- supply voltage system:
- 5 VDC: via data contacts
- surrounding air temperature operation:
- 0 55 C
- surrounding air temperature storage:
- -40 85 C
- vibration resistance:
- 4g per IEC 60068-2-6
- weight:
- 36.000 g
- width:
- 12 mm / 0.472 inch
