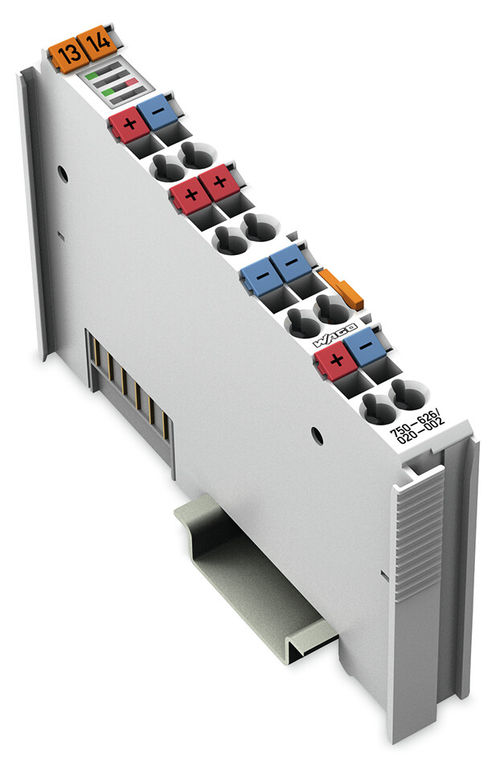

WAGO 750-626/020-002

SKU:

750-626/020-002

UPC:

MPN:

Condition:

New

color:

Light gray

connection technology field supply:

4 x CAGE CLAMP

connection technology system supply:

4 x CAGE CLAMP

connection type 1:

System/field supply

country of origin sales organisation germany:

DE

current carrying capacity power jumper contacts:

0.416666666666667

data width:

8-bit input: 8-bit output

depth:

69.8 mm / 2.748 inch

depth from upper edge of din rail:

62.6 mm / 2.465 inch

emc emission of interference:

Per EN 61000-6-3, marine applications

emc immunity to interference:

Per EN 61000-6-2, marine applications

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

0.881 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

isolation:

300 VDC (limited by a transient protection device) system/field

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

number of outgoing power jumper contacts:

2

operating altitude:

0 2000 m

packaging type:

Box

pollution degree 5:

2 per IEC 61131-2

power consumption 5 v system supply:

29 mA

power consumption field supply module with no external load:

16 mA

protection type:

IP20

relative humidity without condensation:

0.95

shock resistance:

15g per IEC 60068-2-27

signal type:

Voltage

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

supply voltage field:

24 VDC, SELV (-25 +30 %): via power jumper contacts (power supply via CAGE CLAMP connection: transmission via spring contact)

supply voltage system:

24 VDC (-25 +30 %)

surrounding air temperature operation:

0 55 C

surrounding air temperature storage:

-40 85 C

voltage signal type:

24 VDC

weight:

52.100 g

width:

12 mm / 0.472 inch
