Wago

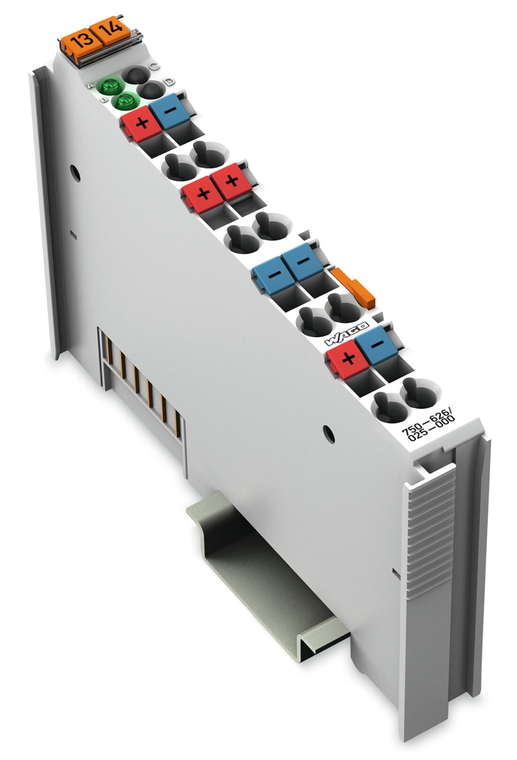

WAGO 750-626/025-000

SKU:

750-626/025-000

UPC:

MPN:

750-626/025-000

Condition:

New

color:

Light gray

conformity marking:

CE

connection technology field supply:

4 x CAGE CLAMP

connection technology system supply:

4 x CAGE CLAMP

connection type 1:

System/field supply

country of origin sales organisation germany:

DE

current carrying capacity power jumper contacts:

0.416666666666667

current via system voltage max:

1.5 A (1 A up to hardware 04)

depth:

69.8 mm / 2.748 inch

depth from upper edge of din rail:

62.6 mm / 2.465 inch

emc emission of interference:

Per EN 61000-6-4, marine applications

emc immunity to interference:

Per EN 61000-6-2, marine applications

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

0.922 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

number of outgoing power jumper contacts:

2

operating altitude:

0 2000 m

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

protection type:

IP20

relative humidity with condensation:

Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E-DIN 40046-721-3, accounting for a temperature range of 20 to +60 C (except for wind-driven precipitation, water and ice formation)

relative humidity without condensation:

0.95

shock resistance:

15g per IEC 60068-2-27

signal type:

Voltage

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

supply voltage field:

24 VDC (-25 +30 %): via power jumper contacts (power supply via CAGE CLAMP connection: transmission via spring contact)

supply voltage system:

24 VDC (-25 +30 %): via pluggable connector (CAGE CLAMP connection)

surrounding air temperature operation:

-20 60 C

surrounding air temperature storage:

-40 85 C

vibration resistance:

4g per IEC 60068-2-6

voltage signal type:

24 VDC

weight:

50.621 g

width:

12 mm / 0.472 inch
