Wago

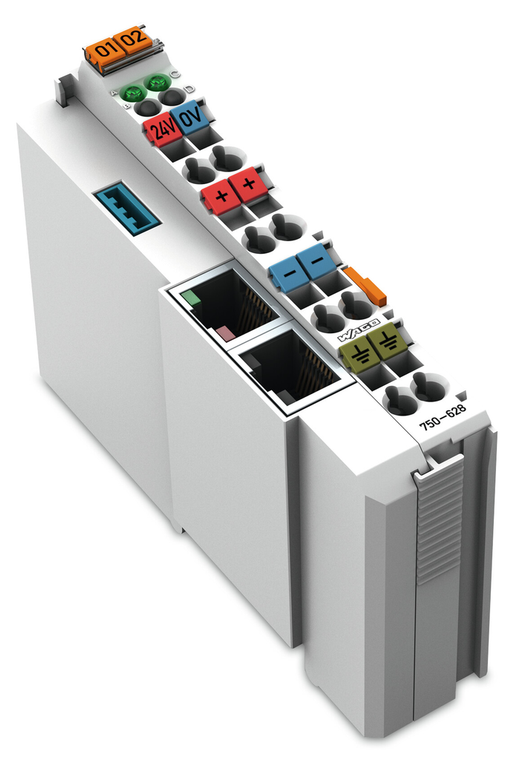

WAGO 750-628

SKU:

750-628

UPC:

MPN:

750-628

Condition:

New

color:

Light gray

conformity marking:

CE

connection technology communication fieldbus:

Local data bus: 2 x RJ-45

connection technology field supply:

6 x CAGE CLAMP

connection technology system supply:

2 x CAGE CLAMP

connection type 1:

System/field supply

country of origin sales organisation germany:

DE

current carrying capacity power jumper contacts:

0.416666666666667

depth:

69.8 mm / 2.748 inch

depth from upper edge of din rail:

62.6 mm / 2.465 inch

device specific:

Distance (max.): 5 m (10 m see manual): (end/coupler modules or coupler/coupler modules)

emc emission of interference:

Per EN 61000-6-4, marine applications

emc immunity to interference:

Per EN 61000-6-2, marine applications

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

0.016 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

input current typ at nominal load 24 v:

200 mA

isolation:

500 V system/field

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

number of modules per node max:

64

number of outgoing power jumper contacts:

3

operating altitude:

0 2000 m

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

power consumption 5 v system supply:

150 mA

power supply efficiency typ at nominal load 24 v:

0.76

protection type:

IP20

relative humidity without condensation:

0.95

shock resistance:

15g per IEC 60068-2-27

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

supply voltage field:

24 VDC (-15 +20 %): via power jumper contacts (power supply via CAGE CLAMP connection: transmission via spring contact)

supply voltage system:

24 VDC (-15 +20 %): via pluggable connector (CAGE CLAMP connection)

surrounding air temperature operation:

0 55 C

surrounding air temperature storage:

-40 85 C

total current system supply:

400 mA

transmission medium:

Shielded copper cable (ETHERNET patch cable): 4 x 2 x 0.25 mm, twisted pair, double shielding STP (Shielded Twisted-Pair)

vibration resistance:

4g per IEC 60068-2-6

weight:

74.800 g

width:

24 mm / 0.945 inch
