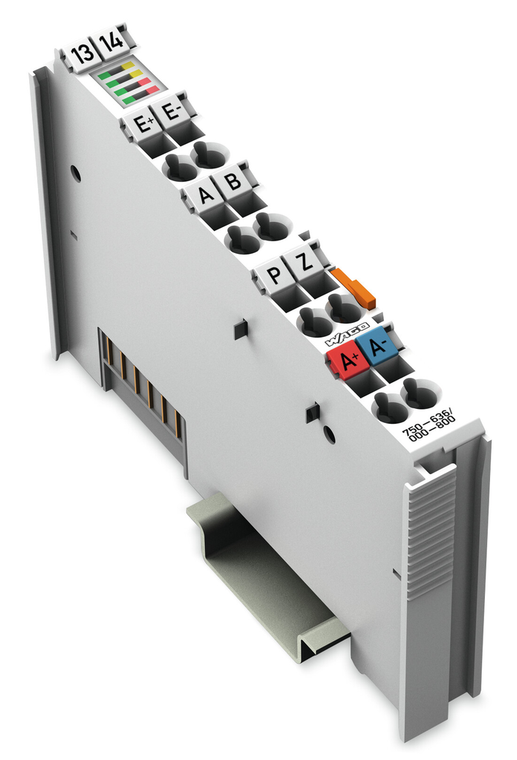

DC-Drive Controller24 VDC 5A.
The DC motor drive/controller from WAGO's 750 series operates with a 20.4-28.8Vdc adjustable supply to field sensing devices and is designed to be interference-free. It features a 24Vdc, 5A drive controller with a 5Vdc supply voltage provided by the system. The device includes Push-in spring CAGE CLAMP connections and is mounted on a DIN-35 rail with a 12mm width. It has an IP20 protection rating and is suitable for ambient temperatures ranging from 0°C to +55°C. This product is equivalent to the model number 750636000800.
- color:
- Light gray
- conformity marking:
- CE
- connection technology inputs outputs:
- 8 x CAGE CLAMP
- connection type 1:
- Inputs/outputs
- country of origin sales organisation germany:
- DE
- data width:
- 32-bit set/actual value: 16-bit control or status
- depth:
- 67.8 mm / 2.669 inch
- depth from upper edge of din rail:
- 60.6 mm / 2.386 inch
- emc emission of interference:
- Per EN 61000-6-3
- emc immunity to interference:
- Per EN 61000-6-2
- exposure to pollutants:
- Per IEC 60068-2-42 and IEC 60068-2-43
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fire load:
- 0.881 MJ
- height:
- 100 mm / 3.937 inch
- housing material:
- Polycarbonate: polyamide 6.6
- input characteristic:
- High-side switching || Type 1
- input current at specific input voltage:
- -3.2 mA at 0.3 V
- input current at specific input voltage 2:
- 0 mA bei 5 V
- input current typ:
- 2.7 mA at 24 V
- isolation:
- 500 V system/field
- limit frequency:
- 50 kHz
- motor connection:
- A+, A-, H-bridge output: short-circuit-protected
- mounting position:
- Horizontal (standing/lying): vertical
- mounting type:
- DIN-35 rail
- number of digital inputs:
- 3
- number of incoming power jumper contacts:
- 2
- number of outgoing power jumper contacts:
- 2
- number of outputs:
- 1 (A+: A-: H-bridge output)
- operating altitude:
- 0 2000 m
- output current max motor:
- 5 A (15 A / 500 ms), short-circuit-protected
- output voltage:
- 19.2 27.5 VDC (UA)
- packaging type:
- Box
- permissible h2s contaminant concentration at a relative humidity 75:
- 10 ppm
- permissible so2 contaminant concentration at a relative humidity 75:
- 25 ppm
- pollution degree 5:
- 2 per IEC 61131-2
- power consumption 5 v system supply:
- 55 mA
- power consumption field supply module with no external load:
- 10 mA
- power consumption typ:
- 2 mA (UA)
- protection type:
- IP20
- pwm frequency typ:
- 20 kHz
- quadrature decoder:
- 1x, 2x, 4x evaluation
- relative humidity without condensation:
- 0.95
- shock resistance:
- 15g per IEC 60068-2-27
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- supply voltage field:
- 24 VDC (-15 +20 %): via power jumper contacts (power supply via blade contact: transmission via spring contact)
- supply voltage system:
- 5 VDC: via data contacts
- surrounding air temperature operation:
- 0 55 C
- surrounding air temperature storage:
- -40 85 C
- transmitter connection:
- A, B, zero low-side switching: 5 24 VDC / open collector
- vibration resistance:
- Per IEC 60068-2-6
- voltage range for signal 0:
- 3 +1.5 VDC
- voltage range for signal 1:
- 2.4 30 VDC
- weight:
- 54.964 g
- width:
- 12 mm / 0.472 inch
