Wago

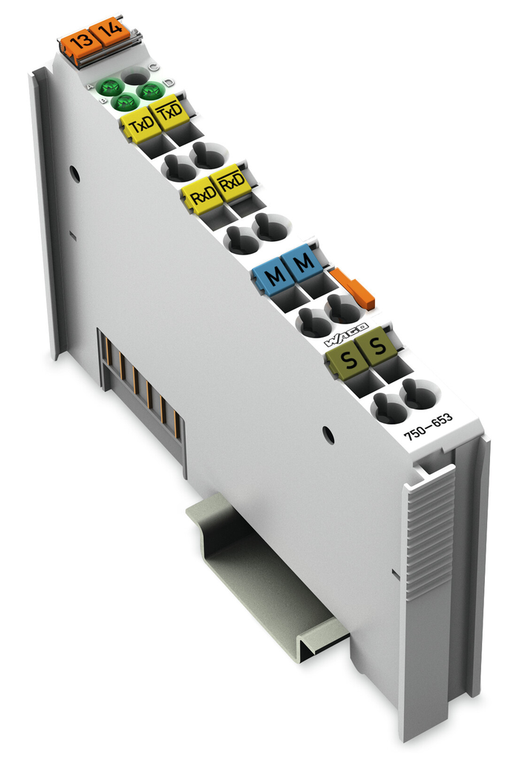

WAGO 750-653

SKU:

750-653

UPC:

MPN:

750-653

Condition:

New

baud rate:

9.6 kBd

bit transfer:

ISO 8482 / DIN 66259 - 4

buffer:

120-byte input / 16-byte output

color:

Light gray

conformity marking:

CE

connection technology inputs outputs:

8 x CAGE CLAMP

connection type 1:

Inputs/outputs

country of origin sales organisation germany:

DE

data width:

1 x 24-bit input/output (3-byte user data): 1 x 8-bit control/status

depth:

69.8 mm / 2.748 inch

depth from upper edge of din rail:

62.6 mm / 2.465 inch

emc emission of interference:

Per EN 61000-6-4, marine applications

emc immunity to interference:

Per EN 61000-6-2, marine applications

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

0.938 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

isolation:

500 V system/field

line length:

Approx. 1000 m twisted pair

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

number of data bits:

8

number of stop bits:

1

operating altitude:

0 2000 m

packaging type:

Box

parity:

None

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

power consumption 5 v system supply:

65 mA

protection type:

IP20

relative humidity without condensation:

0.95

shock resistance:

15g per IEC 60068-2-27

signal type:

RS-422 / RS-485

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

supply voltage system:

5 VDC: via data contacts

surrounding air temperature operation:

0 55 C

surrounding air temperature storage:

-40 85 C

transmission channels:

1 TxD / 1 RxD, full-duplex

vibration resistance:

4g per IEC 60068-2-6

weight:

48.800 g

width:

12 mm / 0.472 inch
