Wago 750-669/000-003

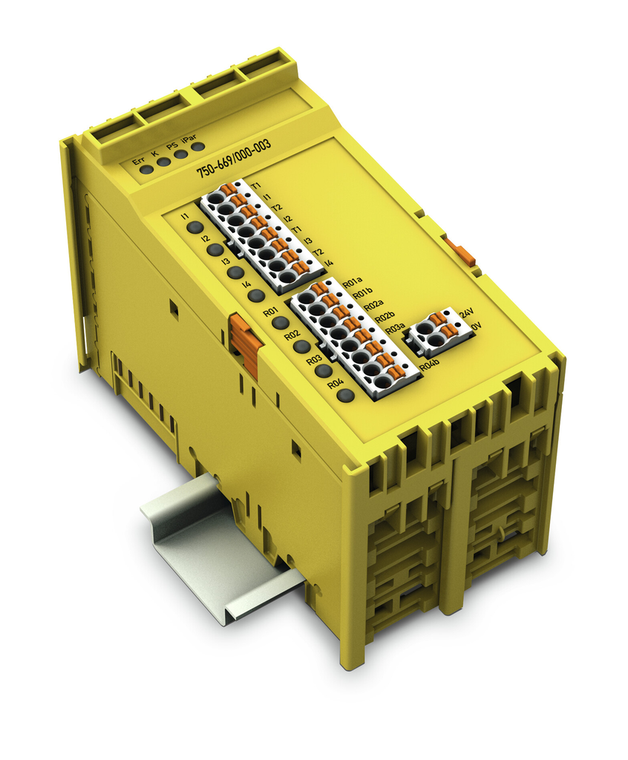

WAGO 750-669/000-003 fail-safe 4-channel digital input/relay output module

Wago
SKU:
750-669/000-003
Availability:
Factory stock
$1,276.00
Condition:
New
Current Stock:
Description

4FDI/4FRO48VAC/ 60VDC 6A, 9999

Technical Data
  • Number of digital inputs: 4
  • Number of digital outputs: 4
  • Total number of channels (module): 8
  • Achievable safety classes: SIL 3; Cat. 4, PL e
  • Type of signal: Voltage
  • Type of signal voltage: AC 48 V
  • Sensor connection: 4 x (sicherer Eingang mit Testpuls)
  • Actuator connection: 4 x (fail-safe output with test pulse)
  • Input characteristic: Type 1
  • Input current per channel for signal (1) typ.: 2.2 mA
  • Output switching design: Relay Output
  • Output current per channel: 6 A
  • Output current (module): 24 A
  • Signal frequency max.: 50 Hz
  • Switching delay: 50 ms
  • Switching current, information note: Schaltstrombereich kompatibel zu den WAGO-PROFIsafe-Busklemmen 75x-66x/000-003
  • Load switching voltage range: 5 V 60 V DC (SELV/PELV); 5 V 48 V AC
  • Switching current (min.): 3 mA
  • System supply voltage: DC 5 V; via data contacts
  • Current consumption, system supply (5 V): 145 mA
  • System and sensor supply voltage: DC 24 V(-25 +30 %)
  • Field supply voltage: DC 24 V; ªber Verdrahtungsebene (Push-in CAGE CLAMP<sup></sup>-Anschluss)
  • Current consumption, field supply (module with no external load): 50 mA
  • Isolation: 500 V system/supply
  • Insulation voltage: Relaisausgnge: AC 48 V, DC 60 V
  • Indicators: LED grªn/rot: Status/Fehler I1 I4, RO1 RO4; LED rot (Err): Sammelfehler; LED grªn/rot (K, PS): Diagnose; LED rot (iPar): Parametrierung
Connection Data
  • Connection technology: In-/Outputs: 16 x Push-in CAGE CLAMP<sup></sup>
  • Connection technology: field supply: 2 x Push-in CAGE CLAMP<sup></sup>
  • Connection type (1): Inputs/Outputs
  • Solid conductor: 0.5 1.5 mm / 20 14 AWG
  • Fine-stranded conductor: 0.5 1.5 mm / 20 14 AWG
  • Strip length: 8 9 mm / 0.31 0.35 inch
  • Connection type (2): Feldversorgung
Geometrical Data
  • Width: 48 mm / 1.89 inch
  • Height: 69.8 mm / 2.748 inch
  • Height from upper-edge of DIN-35 rail: 62.6 mm / 2.465 inch
  • Depth: 100 mm / 3.937 inch
Mechanical Data
  • Type of mounting: DIN-35 rail
Material Data
  • Color: yellow
  • Housing material: Polycarbonate, polyamide 6.6
  • Fire load: 0.000 MJ
  • Weight: 220.300 g
Environmental Requirements
  • Surrounding air (operating) temperature: 0 55 C
  • Surrounding air (storage) temperature: -40 85 C
  • Protection class: IP20
  • Degree of pollution (5): 2 per IEC 61131-2
  • Operating altitude: 0 2000 m
  • Mounting position: horizontal (standing/lying) or vertical
  • Relative air humidity (no condensation): 95 %
  • Vibration resistance: acc. to IEC 60068-2-6
  • Shock resistance: 15g per IEC 60068-2-27
  • EMC immunity to interference: acc. to EN 61000-6-2, EN 61000-6-7, EN 61326-3
  • EMC emission of interference: acc. to EN 61000-6-4
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 %: 10 ppm
  • Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 %: 25 ppm
Commercial data
  • Packaging type: BOX
  • Country of origin: DE
  • GTIN: 4055143535588
  • Customs Tariff No.: 85389099990
.

The WAGO 750 series fail-safe/safety DC digital input/relay output slice module is designed for high safety applications (SIL3/Cat4/PLe) and features 4 fail-safe digital inputs and 4 fail-safe digital outputs, each capable of handling 48Vac/60VDC and 6A per channel. It supports PROFIsafe V2 iPar communication and operates on a 5Vdc supply provided by the system. The module includes spring CAGE CLAMP connections, mounts on a DIN-35 rail with a 48mm width, and is rated for ambient temperatures from 0°C to +55°C. It complies with multiple safety standards, including IEC61508 and EN ISO13849-1, and is equivalent to model 750669000003.

Additional Information
achievable safety classes:
SIL 3: Category 4, PL e
actuator connection:
4 x (Fail-safe output with test pulse)
color:
Yellow
configuration options:
PROFIsafe address adjustable via DIP switch or engineering software
connection technology field supply:
2 x Push-in CAGE CLAMP
connection technology inputs outputs:
16 x Push-in CAGE CLAMP
connection type 1:
Inputs/outputs
connection type 2:
Field supply
country of origin sales organisation germany:
DE
depth:
69.8 mm / 2.748 inch
depth from upper edge of din rail:
62.6 mm / 2.465 inch
emc emission of interference:
Per EN 61000-6-4
emc immunity to interference:
Per EN 61000-6-2: EN 61326-3-1
exposure to pollutants:
Per IEC 60068-2-42 and IEC 60068-2-43
fine stranded conductor:
0.5 1.5 mm / 20 14 AWG
fire load:
0.828 MJ
height:
100 mm / 3.937 inch
housing material:
Polycarbonate: polyamide 6.6
indicators:
LED green/red: Status/Error I1 I4, RO1 RO4: LED red (Err): Group error: LED green/red (K, PS): Diagnostics: LED red (iPar): Parameterization
input characteristic:
Clock sensitive || Type 1
input current per channel for signal 1 typ:
2.2 mA
isolation:
500 V system/field
isolation voltage:
Relay outputs: 48 VAC, 60 VDC
mounting position:
Horizontal (standing/lying): vertical
mounting type:
DIN-35 rail
number of digital inputs:
4
number of digital outputs:
4
operating altitude:
0 2000 m
output circuit design:
Relay outputs
output current module:
24 A
output current per channel:
0.25
packaging type:
Box
permissible h2s contaminant concentration at a relative humidity 75:
10 ppm
permissible so2 contaminant concentration at a relative humidity 75:
25 ppm
pollution degree 5:
2 per IEC 61131-2
power consumption 5 v system supply:
145 mA
power consumption field supply module with no external load:
50 mA
protection type:
IP20
relative humidity without condensation:
0.95
sensor connection:
4 x (Fail-safe input with test pulse)
shock resistance:
15g per IEC 60068-2-27
signal frequency max:
50 Hz
signal type:
Voltage
solid conductor:
0.5 1.5 mm / 20 14 AWG
strip length:
8 9 mm / 0.31 0.35 inch
supply voltage field:
24 VDC: via pluggable connector (Push-in CAGE CLAMPconnection)
supply voltage system:
5 VDC: via data contacts
supply voltage system and sensor:
24 VDC(-25 +30 %)
surrounding air temperature operation:
0 55 C
surrounding air temperature storage:
-40 85 C
switching current min:
3 mA
switching current note:
Switching current range compatible with the WAGO 75x-66x/000-003 PROFIsafe I/O Module
switching delay:
50 ms
switching voltage range:
5 60 VDC (SELV/PELV): 5 48 VAC
total number of channels module:
8
vibration resistance:
Per IEC 60068-2-6
voltage signal type:
48 VAC
weight:
220.300 g
width:
48 mm / 1.89 inch
