Wago

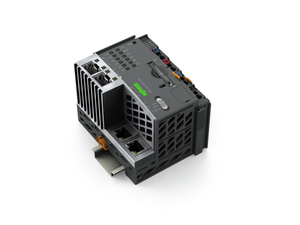

Wago 750-8211/040-001

SKU:

750-8211/040-001

UPC:

MPN:

750-8211/040-001

Condition:

New

baud rate:

ETHERNET: 10/100 Mbit/s

baud rate communication fieldbus 1:

10/100 Mbit/s

color:

Dark gray

communication:

Modbus (TCP, UDP) || EtherNet/IPTM Adapter (slave), library for e!RUNTIME || MQTT || Telecontrol protocols (requires an additional license on the device)

configuration options:

e!COCKPIT || WAGO-I/O-CHECK || Web-Based Management || e!RUNTIME Library || CODESYS Library

conformity marking:

CE

connection technology communication fieldbus:

Modbus TCP/UDP: 2 x RJ-45: 2 x SFP: LC fiber-optic connector

connection technology device configuration:

1 x Male connector: 4-pole

connection technology field supply:

4 x CAGE CLAMP

connection technology system supply:

2 x CAGE CLAMP

connection type 1:

System/field supply

country of origin sales organisation germany:

DE

cpu:

Cortex A8: 1 GHz

current carrying capacity power jumper contacts:

0.416666666666667

data memory:

CODESYS V2: 64 MB: e!RUNTIME: 128 MB

depth:

71.9 mm / 2.831 inch

depth from upper edge of din rail:

64.7 mm / 2.547 inch

derating:

Derating (supply voltage): Surrounding air temperatures under laboratory conditions: (-25 +30 %): for -40 +55 C: 24 V (-25 +20 %): for +55 +70 C: 24 V (-25 +10 %): Lower limit in all temperature ranges: 27.5 % (

emc emission of interference:

Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5

emc immunity to interference:

Per EN 61000-6-1, -2: EN 61131-2: marine applications: EN 50121-3-2: EN 50121-4, -5: EN 60255-26: EN 60870-2-1: EN 61850-3: IEC 61000-6-5: IEEE 1613: VDEW: 1994

ethernet protocols:

DHCP || DNS || NTP || FTP || FTPS || SNMP || HTTP || HTTPS || SSH

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.25 2.5 mm / 24 14 AWG

fire load:

0.378 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

indicators:

LED (SYS, RUN, I/O, U1 U7) red/green/orange: Status of system, program, local data bus, status programmable by user (can be used via CODESYS library): LED (A, C) green: Status of system power supply, field supply

input and output internal process image max:

1000 Worte/1000 Worte

input and output modbus process image max:

CODESYS V2: 1000 Worte/1000 Worte: e!RUNTIME: 32000 Worte/32000 Worte

input current typ at nominal load 24 v:

550 mA

internal memory flash:

4096 MB

main memory ram:

512 MB

memory card slot:

Push-push mechanism: Cover lid (sealable)

memory card type:

SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO Memory Card)

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

non volatile hardware memory:

128 kB

non volatile software memory:

128 kB || 128 kB

number of modules per node max:

64

number of outgoing power jumper contacts:

2

operating altitude:

Without temperature derating: 0 2000 m: with temperature derating: 2000 5000 m (0.5 K/100 m): 5000 m (max.)

operating system:

Real-time Linux (with RT-Preempt patch)

packaging type:

Box

pollution degree 5:

2 per IEC 61131-2

program memory:

CODESYS V2: 16 MB: e!RUNTIME: 32 MB

programming environment:

e!COCKPIT (based on CODESYS V3) || WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)

programming languages per iec 61131 3:

Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC)

protection type:

IP20

rated surge voltage:

1 kV

relative humidity with condensation:

Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)

relative humidity without condensation:

0.95

shock resistance:

Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks: 25g/6 ms/1,000 shocks), EN 50155, EN 61373

solid conductor:

0.25 2.5 mm / 24 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

supply voltage field:

24 VDC: Power supply via pluggable connector (CAGE CLAMP connection): Transmission via power jumper contacts: Derating must be observed!

supply voltage system:

24 VDC: via pluggable connector (CAGE CLAMP connection): Derating must be observed!

surrounding air temperature operation:

-40 70 C

surrounding air temperature storage:

-40 85 C

total current system supply:

1700 mA

transmission medium communication fieldbus:

ETHERNET: Twisted Pair S-UTP: 100 : Cat. 5: 100 m maximum cable length:

vibration resistance:

Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155: EN 61373

visualization:

Web Visu

weight:

333.571 g

width:

78.6 mm / 3.094 inch
