PFC200, G2 2ETH RS Tele XTR.

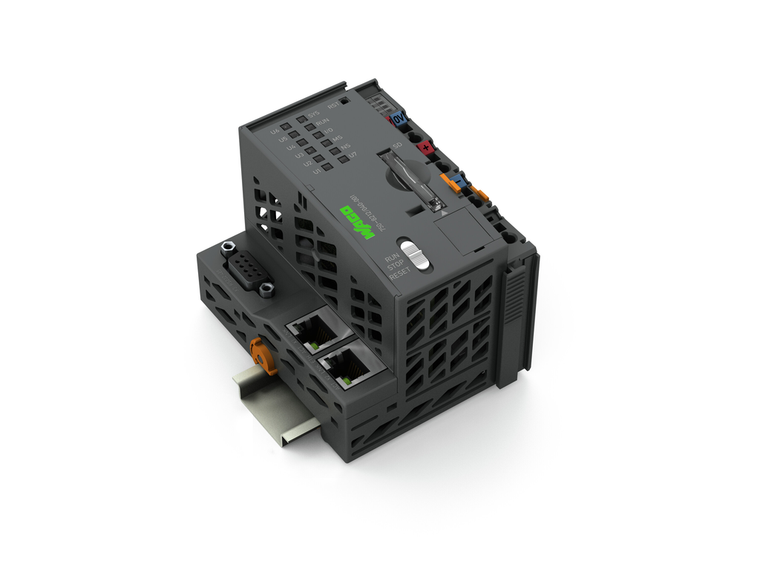

The WAGO PFC200 XTR series is a robust Programmable Logic Controller (PLC) CPU unit designed for extended temperature ranges (-40°C to +70°C). It features an ARM Cortex-A8 1GHz processor, 512MB RAM, and 4GB internal flash memory. The unit supports various communication protocols including Modbus RTU, Modbus TCP, Ethernet, EtherCAT, RS-232, and RS-485, and offers 64 connections per node. It operates on a 24Vdc supply voltage and includes 2 RJ45 connectors, a 9-pin D-sub connector, and a CAGE CLAMP 2-pin system. The PLC is mounted on a DIN-35 rail, has an IP20 rating, and includes slots for SD and SDHC cards up to 32GB. It replaces the obsolete 750-880/040-001 component and is equivalent to the 7508212040001 model.
- ambient temperature operation:
- -40 ¦ +70 °C
- baud rate:
- ETHERNET: 10/100 Mbit/s
- baud rate communication fieldbus 1:
- 10/100 Mbit/s
- communication:
- Modbus (TCP, UDP) || ETHERNET || EtherNet/IPTM Adapter (slave), library for e!RUNTIME || Modbus® RTU || RS-232 serial interface || RS-485 interface || MQTT || EtherCAT® master (requires an additional license) || BACnet/IP, requires an additional lice
- configuration options:
- e!COCKPIT || WAGO-I/O-CHECK || Web-Based Management || e!RUNTIME library || CODESYS Library
- conformity marking:
- CE
- connection technology communication fieldbus:
- Modbus TCP/UDP: 2 x RJ-45
- connection technology device configuration:
- 1 x Male connector
- connection technology field supply:
- 4 x CAGE CLAMP®
- connection technology system supply:
- 2 x CAGE CLAMP®
- connection type 1:
- System/field supply
- COUNTRY OF ORIGIN VKORG GERMANY:
- DE
- CPU:
- Cortex A8
- CURRENT CARRYING CAPACITY POWER JUMPER CONTACTS:
- 0.416666666666667
- CUSTOMS TARIFF NUMBER VKORG GERMANY:
- 85371091990
- DATA MEMORY:
- CODESYS V2: 64 MB
- DEPTH:
- 71.9 mm / 2.831 inches
- DEPTH FROM UPPER EDGE OF DIN RAIL:
- 64.7 mm / 2.547 inches
- DERATING:
- Derating (supply voltage): Surrounding air temperatures under laboratory conditions: (-25 ¦ +30 %)
- EMC EMISSION OF INTERFERENCE:
- Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5
- EMC IMMUNITY TO INTERFERENCE:
- Per EN 61000-6-1, -2
- ETHERNET PROTOCOLS:
- DHCP || DNS || NTP || FTP || FTPS || SNMP || HTTP || HTTPS || SSH
- EXPOSURE TO POLLUTANTS:
- Per IEC 60068-2-42 and IEC 60068-2-43
- FINE STRANDED CONDUCTOR:
- 0.25 ¦ 2.5 mm² / 24 ¦ 14 AWG
- FIRE LOAD:
- 0.383 MJ
- HEIGHT:
- 100 mm / 3.937 inches
- HOUSING MATERIAL:
- Polycarbonate
- INDICATORS:
- LED (SYS, RUN, I/O, U1 ¦ U7) red/green/orange: Status of system, program, local data bus, status programmable by user (can be used via CODESYS library)
- INPUT AND OUTPUT PROCESS IMAGE INTERNAL MAX:
- 1000 words/1000 words
- INPUT AND OUTPUT PROCESS IMAGE MODBUS MAX:
- CODESYS V2: 1000 words/1000 words
- INPUT CURRENT TYP AT NOMINAL LOAD 24 V:
- 550 mA
- INTERNAL MEMORY FLASH:
- 4096 MB
- MAIN MEMORY RAM:
- 512 MB
- MEASUREMENT ERROR DEVIATION MAX FROM THE UPPER RANGE VALUE:
- MEASUREMENT ERROR DEVIATION MAX OF THE UPPER RANGE VALUE 2=
- MEMORY CARD SLOT:
- Push-push mechanism
- MISMATING PROTECTION:
- MOUNTING NOTE=
- MOUNTING POSITION:
- Horizontal (standing/lying)
- MOUNTING TYPE:
- DIN-35 rail
- NON VOLATILE HARDWARE MEMORY:
- 128 KB
- NON VOLATILE SOFTWARE MEMORY:
- 128 KB || 128 KB
- NUMBER OF MODULES PER NODE MAX:
- 64
- NUMBER OF OUTGOING POWER JUMPER CONTACTS:
- 2
- OPERATING ALTITUDE:
- Without temperature derating: 0 ¦ 2000 m
- OPERATING SYSTEM:
- Real-time Linux (with RT-Preempt patch)
- PERMISSIBLE H2S CONTAMINANT CONCENTRATION AT A RELATIVE HUMIDITY 75:
- 10 ppm
- PERMISSIBLE SO2 CONTAMINANT CONCENTRATION AT A RELATIVE HUMIDITY 75:
- 25 ppm
- POLLUTION DEGREE 5:
- 2 per IEC 61131-2
- PRODUCT GROUP CODE:
- 15
- PROGRAM MEMORY:
- CODESYS V2: 16 MB
- PROGRAMMING ENVIRONMENT:
- e!COCKPIT (based on CODESYS V3) || WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
- PROGRAMMING LANGUAGES PER IEC 61131 3:
- Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC)
- PROTECTION TYPE:
- IP20
- RATED SURGE VOLTAGE:
- 1 kV
- RELATIVE HUMIDITY WITH CONDENSATION:
- Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
- RELATIVE HUMIDITY WITHOUT CONDENSATION:
- 0.95
- SHOCK RESISTANCE:
- Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks
- SOLID CONDUCTOR:
- 0.25 ¦ 2.5 mm² / 24 ¦ 14 AWG
- STRIP LENGTH:
- 8 ¦ 9 mm / 0.31 ¦ 0.35 inches
- SUPPLY VOLTAGE FIELD:
- 24 VDC
- SUPPLY VOLTAGE SYSTEM:
- 24 VDC
- SURROUNDING AIR TEMPERATURE STORAGE:
- -40 ¦ +85 °C
- TELECONTROL PROTOCOLS:
- IEC 60870-5-101/-103/-104 || IEC 61400-25 || IEC 61850-7 || DNP3
- TOTAL CURRENT SYSTEM SUPPLY:
- 1700 mA
- TRANSMISSION MEDIUM COMMUNICATION FIELDBUS:
- ETHERNET: Twisted pair S-UTP
- TYPE OF MEMORY CARD:
- SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO Memory Card)
- VIBRATION RESISTANCE:
- Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155
- VISUALIZATION:
- Web-Visu
- WEIGHT:
- 213.551 g
- WIDTH:
- 78.6 mm / 3.094 inches
