Wago

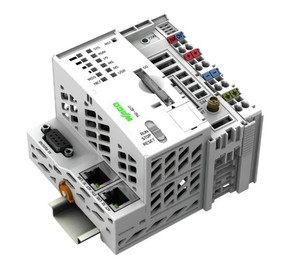

WAGO 750-8217/025-000

SKU:

750-8217/025-000

UPC:

MPN:

750-8217/025-000

Condition:

New

baud rate:

10/100 Mbit/s

baud rate communication fieldbus 1:

10/100 Mbit/s

color:

Light gray

communication:

Modbus (TCP, UDP) || ETHERNET || EtherNet/IPTM Adapter (slave), library for e!RUNTIME || Modbus« RTU || RS-232 serial interface || RS-485 serial interface || MQTT || BACnet/IP, requires an additional license || EtherCAT Master, requires an additiona

configuration options:

e!COCKPIT || WAGO-I/O-CHECK || Web-Based Management || e!RUNTIME Library || CODESYS Library

conformity marking:

CE

connection technology antenna:

1 x SMA socket

connection technology communication fieldbus:

Modbus TCP/UDP: 2 x RJ-45: Modbus RTU: 1 x D-sub 9 socket: RS-232 serial interface: 1 x D-sub 9 socket: RS-485 serial interface: 1 x D-sub 9 socket

connection technology device configuration:

1 x Male connector: 4-pole

connection technology field supply:

6 x CAGE CLAMP«

connection technology system supply:

2 x CAGE CLAMP«

connection type 1:

System/field supply

country of origin sales organisation germany:

DE

cpu:

Cortex A8: 1 GHz

current carrying capacity power jumper contacts:

0.416666666666667

data memory:

128 MB

depth:

71.9 mm / 2.831 inch

depth from upper edge of din rail:

64.7 mm / 2.547 inch

emc emission of interference:

Per EN 61000-6-3, marine applications

emc immunity to interference:

Per EN 61000-6-2, marine applications

ethernet protocols:

DHCP || DNS || NTP || FTP || FTPS || SNMP || HTTP || HTTPS || SSH

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.08 ƒƒ‡ª 2.5 mm / 28 ƒƒ‡ª 14 AWG

fire load:

3.575 MJ

frequency band:

GSM dual band (B3: B8): E-UTRA bands (B1: B3: B5: B7: B8: B20: B38: B40: B41)

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

indicators:

LED (SYS, RUN, I/O, MS, NS, USR, S1 ƒƒ‡ª S4, WDS, NET) red/green/orange: system status, program, local data bus, status programmable by user (can be used via CODESYS library), signal strength S1 ƒƒ‡ª S4, data service status: LED (CON, A, B) green: mo

input and output internal process image max:

1000 Worte/1000 Worte

input and output modbus process image max:

e!RUNTIME: 32000 Worte/32000 Worte

input current typ at nominal load 24 v:

550 mA

internal memory flash:

4096 MB

isolation:

500 V system/field

main memory ram:

512 MB

memory card slot:

Push-push mechanism: Cover lid (sealable)

memory card type:

SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO Memory Card)

mounting position:

Any

mounting type:

DIN-35 rail

non volatile hardware memory:

128 kB

non volatile software memory:

128 kB

note:

Country approvals: All EU countries(approvals for other countries upon request)

number of modules per node max:

250

number of modules without a bus extension max:

64

number of outgoing power jumper contacts:

3

operating altitude:

Without temperature derating: 0 ƒƒ‡ª 2000 m: with temperature derating: 2000 ƒƒ‡ª 5000 m (0.5 K/100 m): 5000 m (max.)

operating system:

Real-time Linux (with RT-Preempt patch)

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

program memory:

32 MB

programming environment:

e!COCKPIT (based on CODESYS V3)

programming languages per iec 61131 3:

Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC)

protection type:

IP20

radio technology:

GSM/UMTS/LTE

relative humidity with condensation:

Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E-DIN 40046-721-3, accounting for a temperature range of ƒƒªƒƒ†20 to +60 C (except for wind-driven precipitation, water and ice formation)

relative humidity without condensation:

0.95

security encryption:

OpenVPN, IPsec, firewall

services:

SMS (bidirectional) || GPRS connection to Internet

shock resistance:

15g per IEC 60068-2-27

sim card slot:

Push-push mechanism

sim card type:

Mini-SIM: Temperature range: ƒƒªƒƒ†20 ƒƒ‡ª +85 C

solid conductor:

0.08 ƒƒ‡ª 2.5 mm / 28 ƒƒ‡ª 14 AWG

strip length:

8 ƒƒ‡ª 9 mm / 0.31 ƒƒ‡ª 0.35 inch

supply voltage field:

24 VDC (-25 ƒƒ‡ª +30 %): via power jumper contacts

supply voltage system:

24 VDC (-25 ƒƒ‡ª +30 %): via pluggable connector (CAGE CLAMP« connection)

surrounding air temperature operation:

-20 ƒƒ‡ª 60 C

surrounding air temperature storage:

-40 ƒƒ‡ª 85 C

telecontrol protocols:

IEC 60870-5-101/-103/-104 (additional license as slave or master) || IEC-61850 (additional license as Client 300) || DNP3 (additional license as Slave or Master 300)

total current system supply:

700 mA

transmission medium communication fieldbus:

Twisted Pair S-UTP: 100 : Cat. 5: 100 m maximum cable length

vibration resistance:

Per IEC 60068-2-6

visualization:

Web Visu

weight:

302.968 g

width:

102.5 mm / 4.035 inch
